SPECIFICATIONS

Brand Name: BSIDE

Certification: CE,FCC,RoHS

Display Size: 2.0 - 3.9 Inches

Maximum temperature: 550 ℃

Minimum temperature: -20 ℃

Style: Handheld

Thermal pixels: 120*90

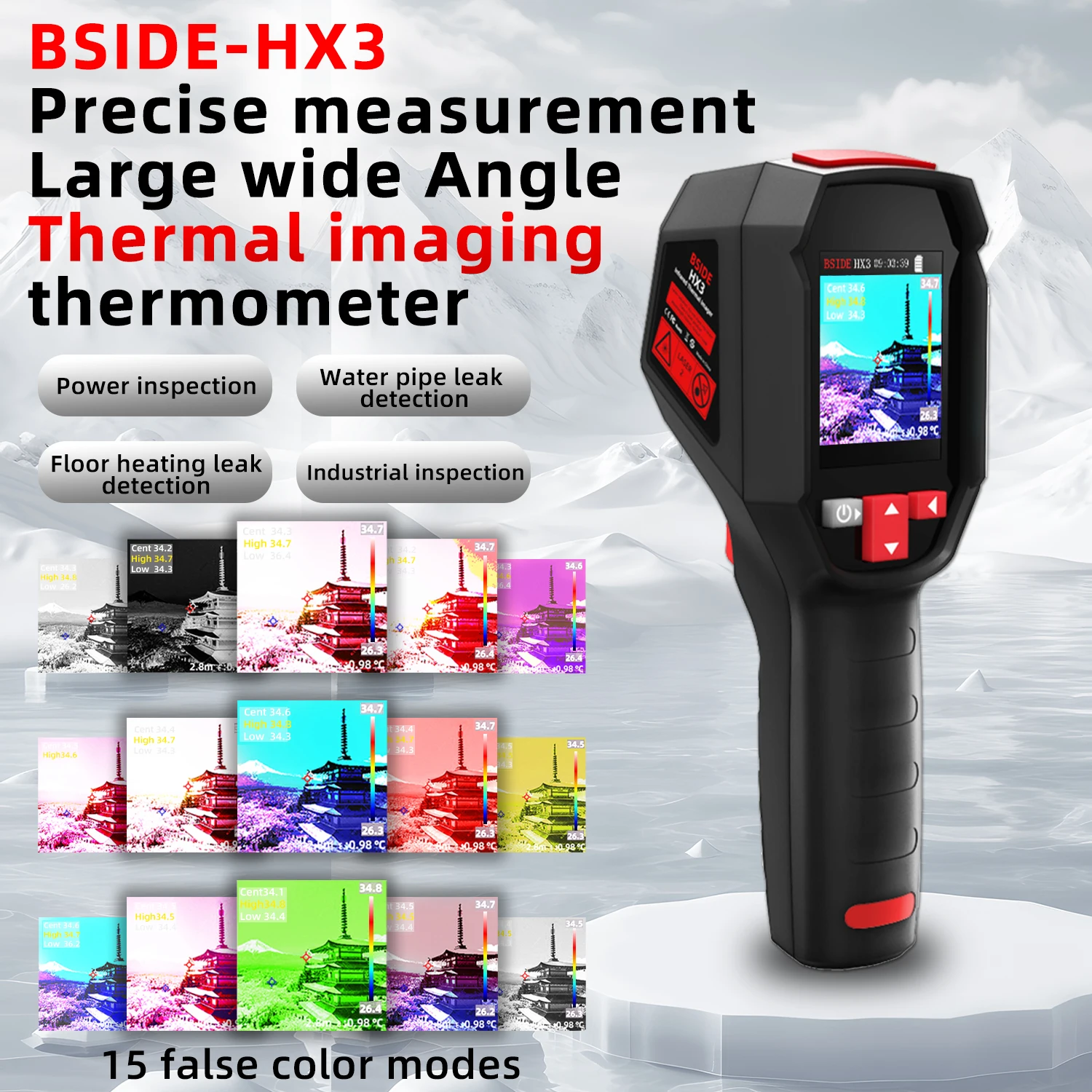

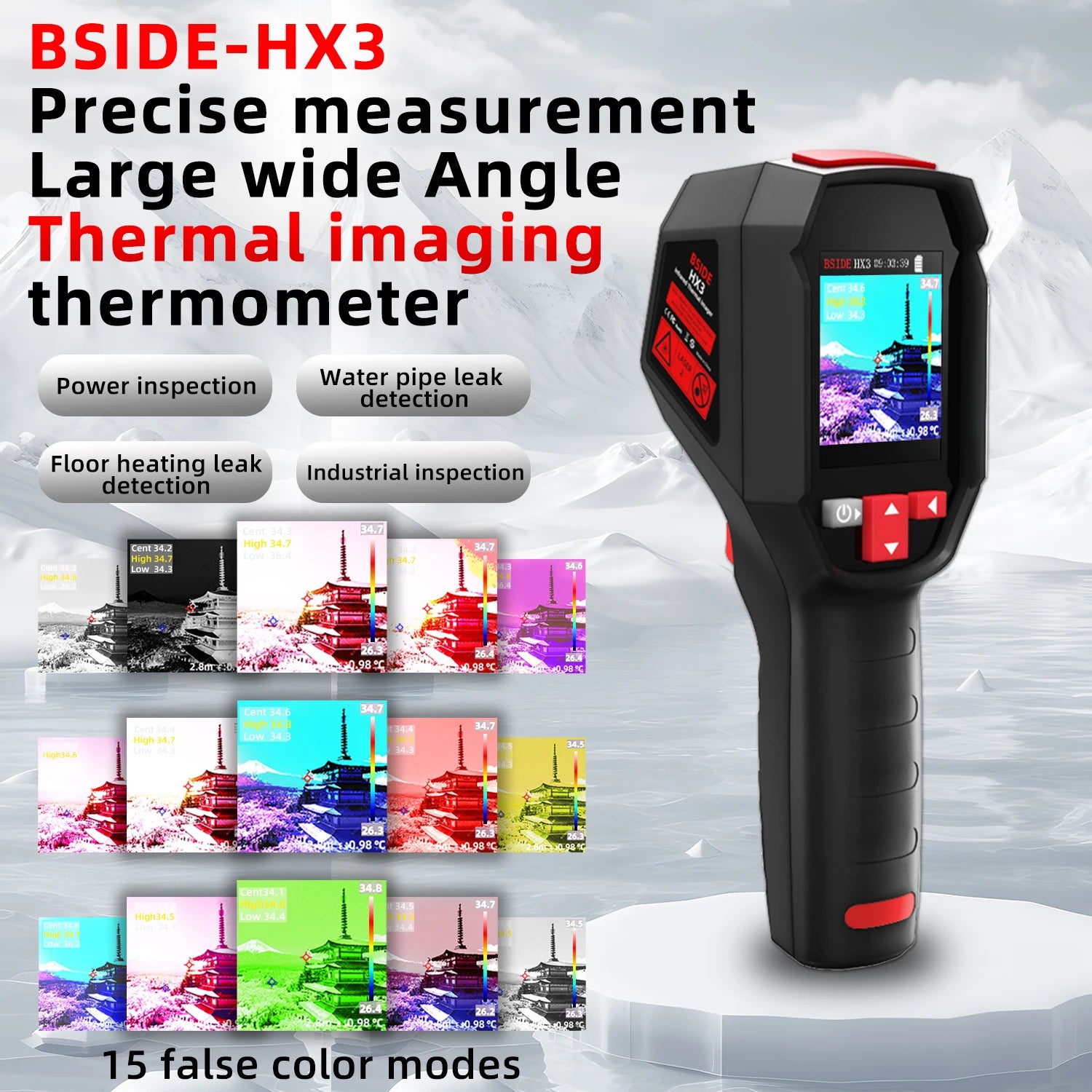

BSIDE New Smart Portable Thermal Imager 15 Color Palettes -20~550C 100×100IR Resolution PC Analysis Software Drop Resistant

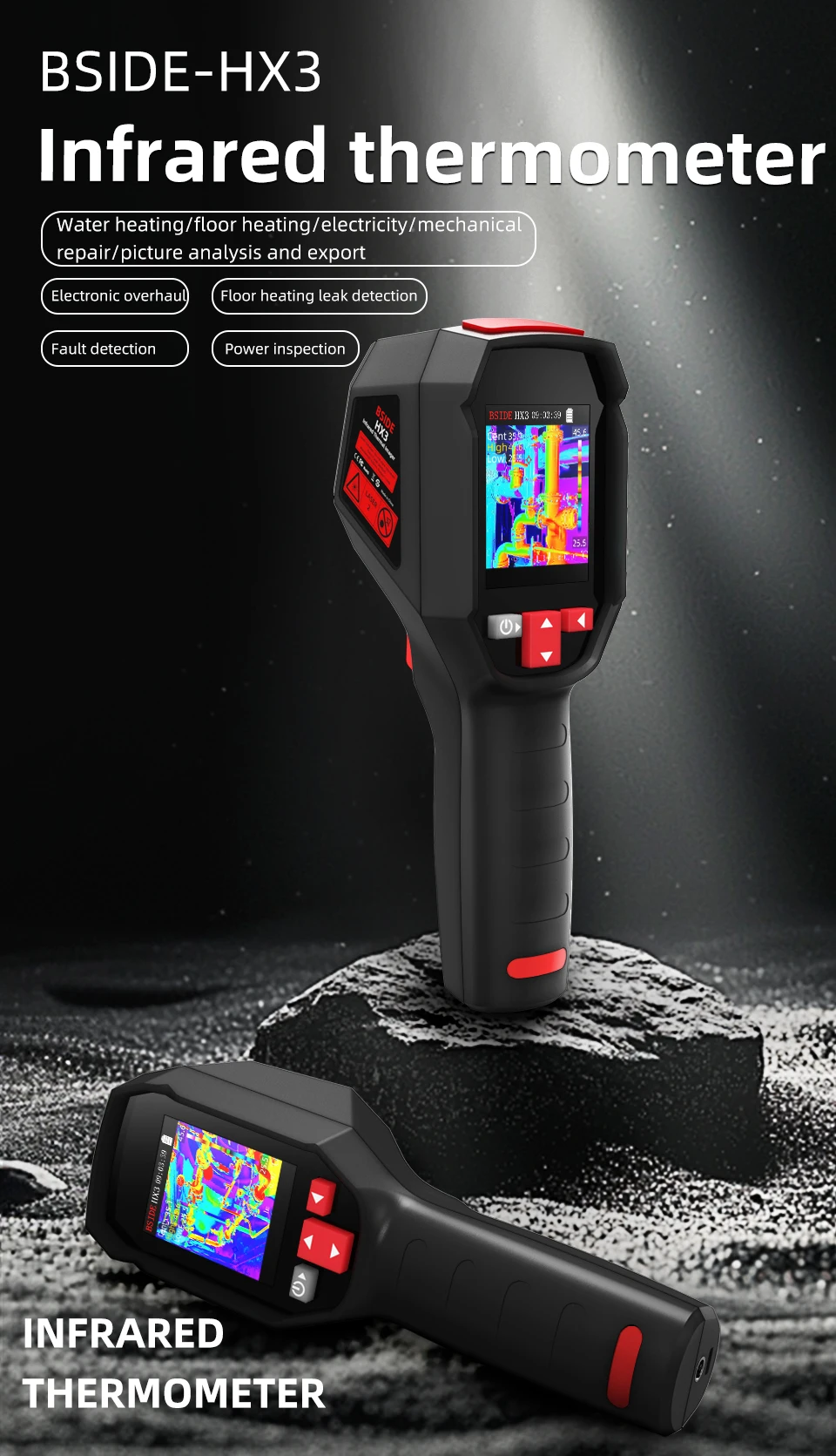

BSIDE HX3 is a new

2.4-inch screen, 15 false color modes, high and low temperature alarms for high accuracy Adjustable emissivity Data storage and export Temperature analysis of stored pictures is possible.

The body adopts adouble injection molding process, which is durable.

It also comes with ahigh-quality tote.

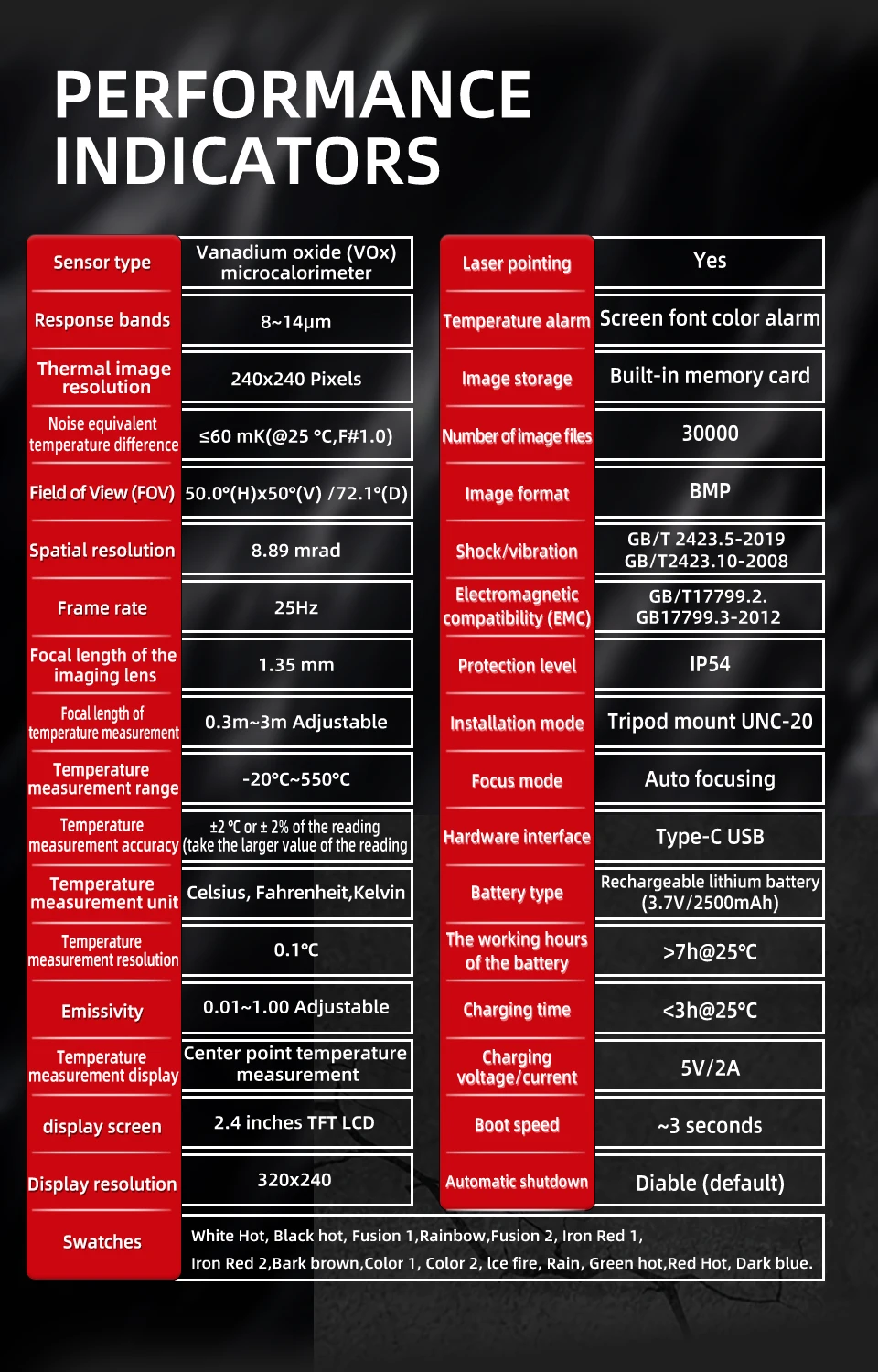

Product model:

Product Model: BSIDE HX3

Sensor type: Vanadium oxide microbolometer

IR resolution: 240 x 240

Response band: 8-14 μ m

Frame rate: 25Hz

NETD：< 60mK @ 25 °C

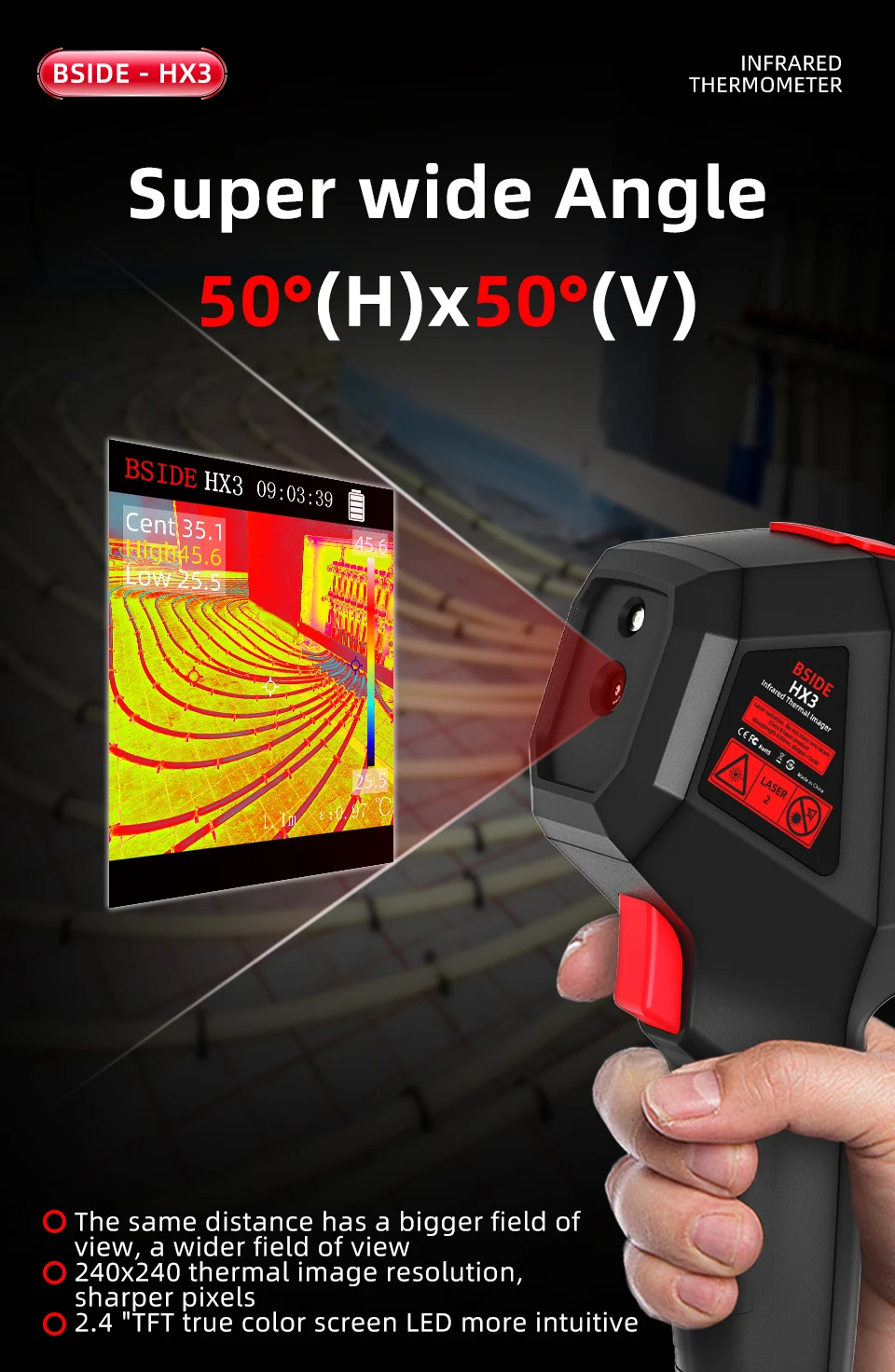

Field of view (FOV): 50°H×50°V/72.1°D

Spatial resolution (IFOV): 8.89mrad

Focal length of imaging lens: 1.35mm

Temperature measurement focal length: 0.3m~3m adjustable

Temperature measurement range: -20 °C to 550 °C

Temperature accuracy: ± 2 °C/± 2% (maximum reading)

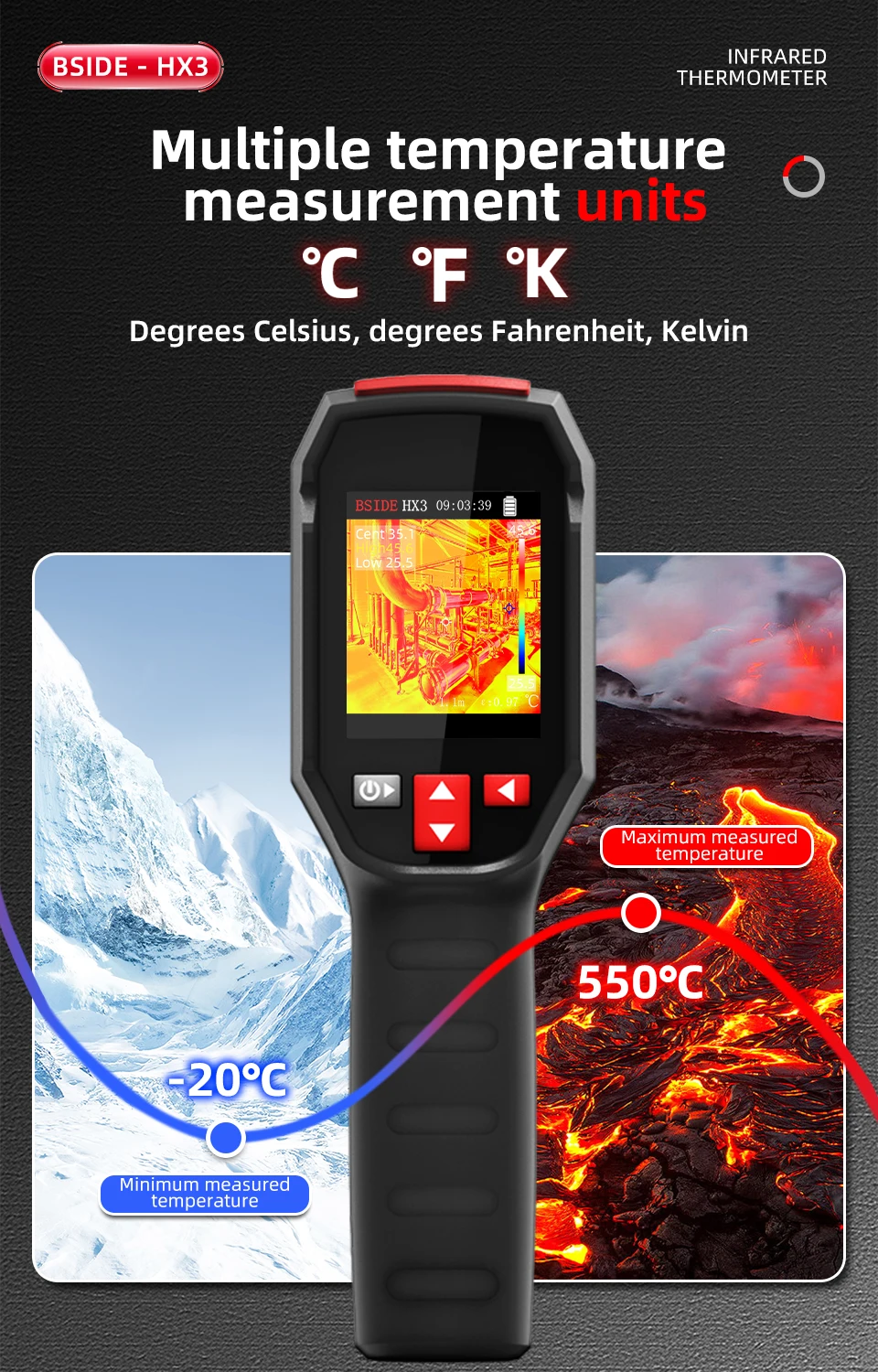

Temperature measurement unit: °C/°F/Kelvin

Temperature measurement resolution: 0.1°C

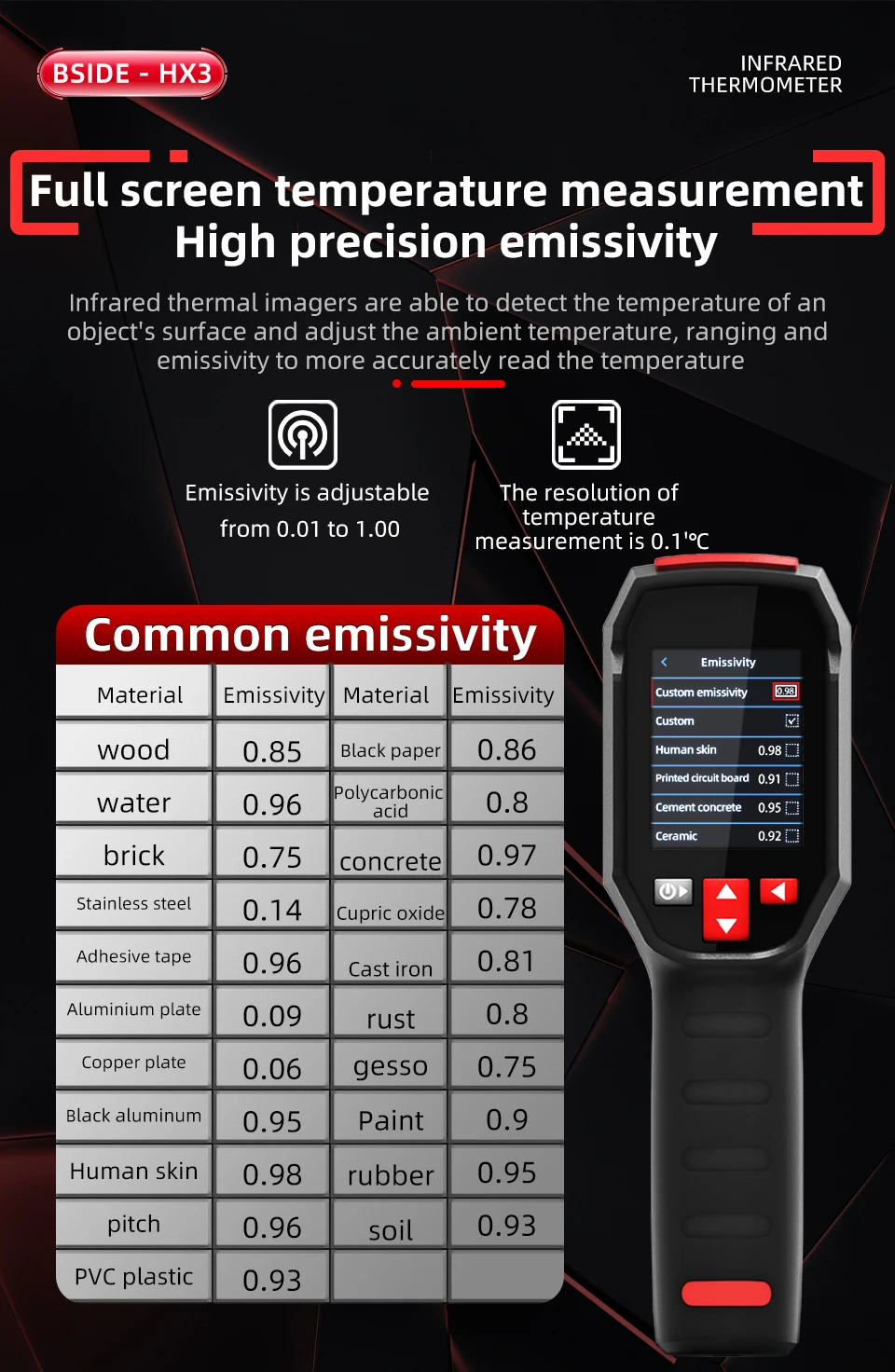

Emissivity: 0.01~1.0 adjustable

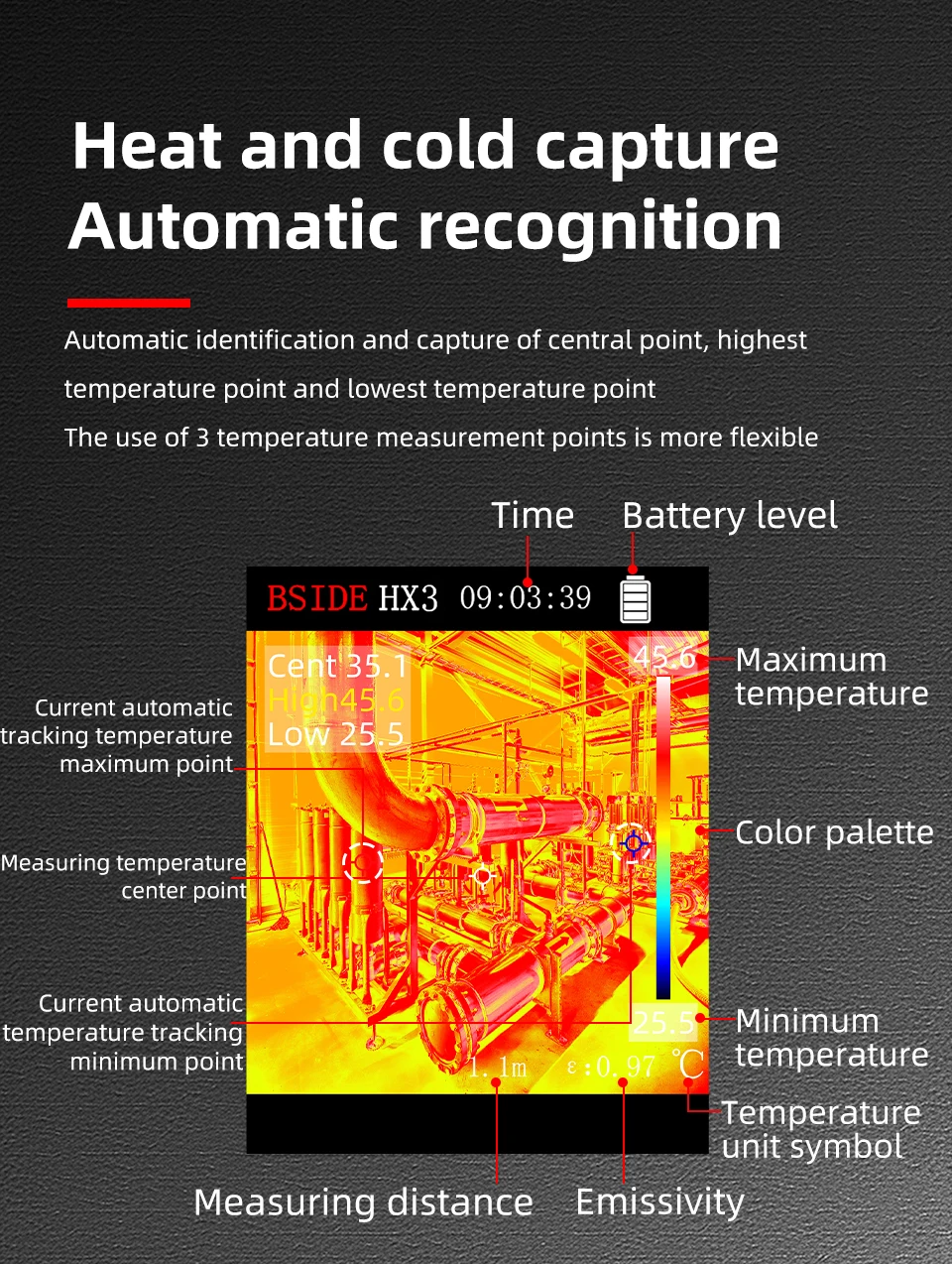

Temperature measurement display: central point temperature measurement, high and low temperature tracking
Color Palette: White Hot, Black Hot, Fusion 1, Rainbow, Fusion 2, Dark Sepia, Color 1, Color 2, Iron Red 1, Iron Red

2, Fire and Ice, Rain, Green Hot, Red Hot, Dark Blue

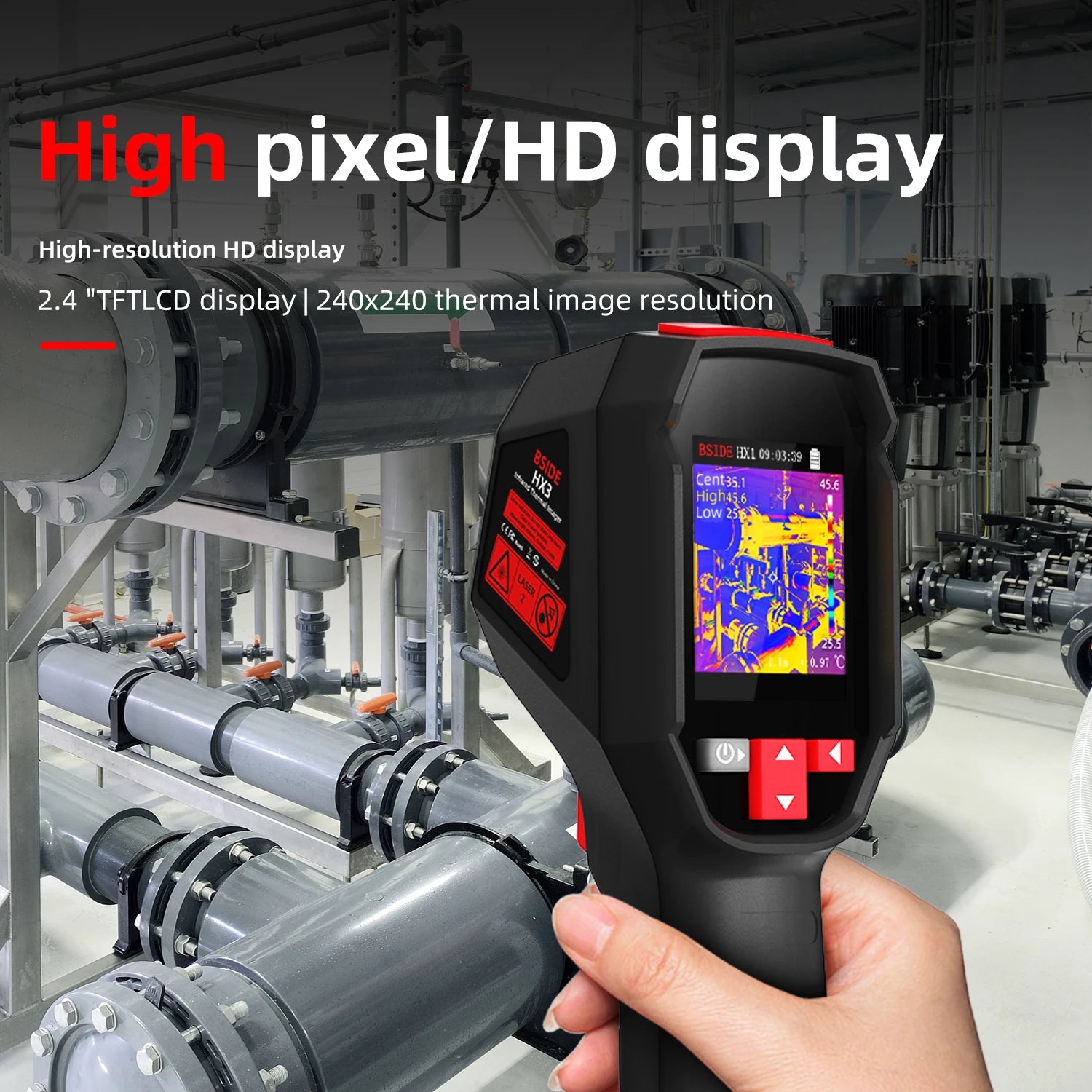

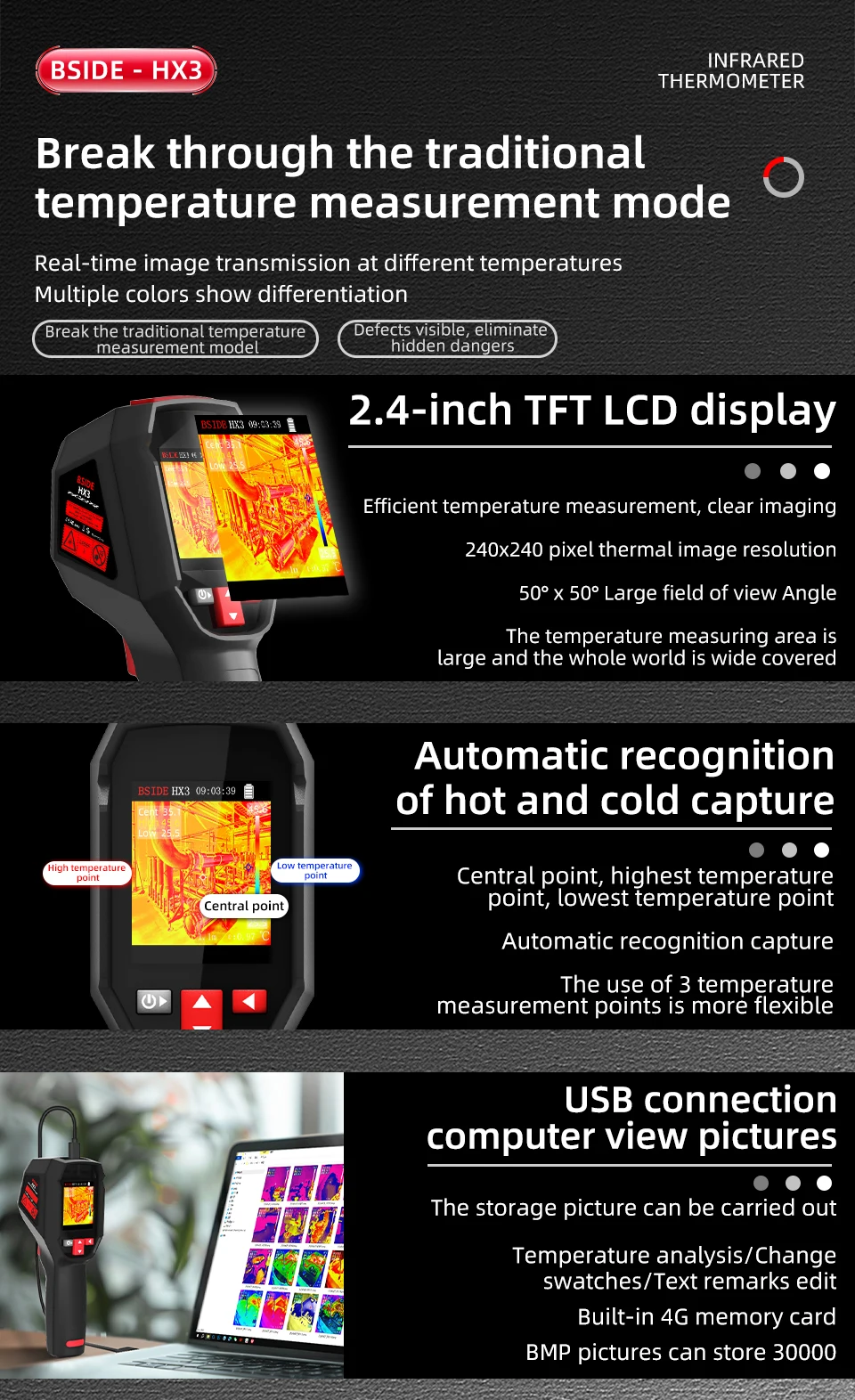

Display: 2.4 inch TFT LCD screen

Display resolution: 320 x 240px

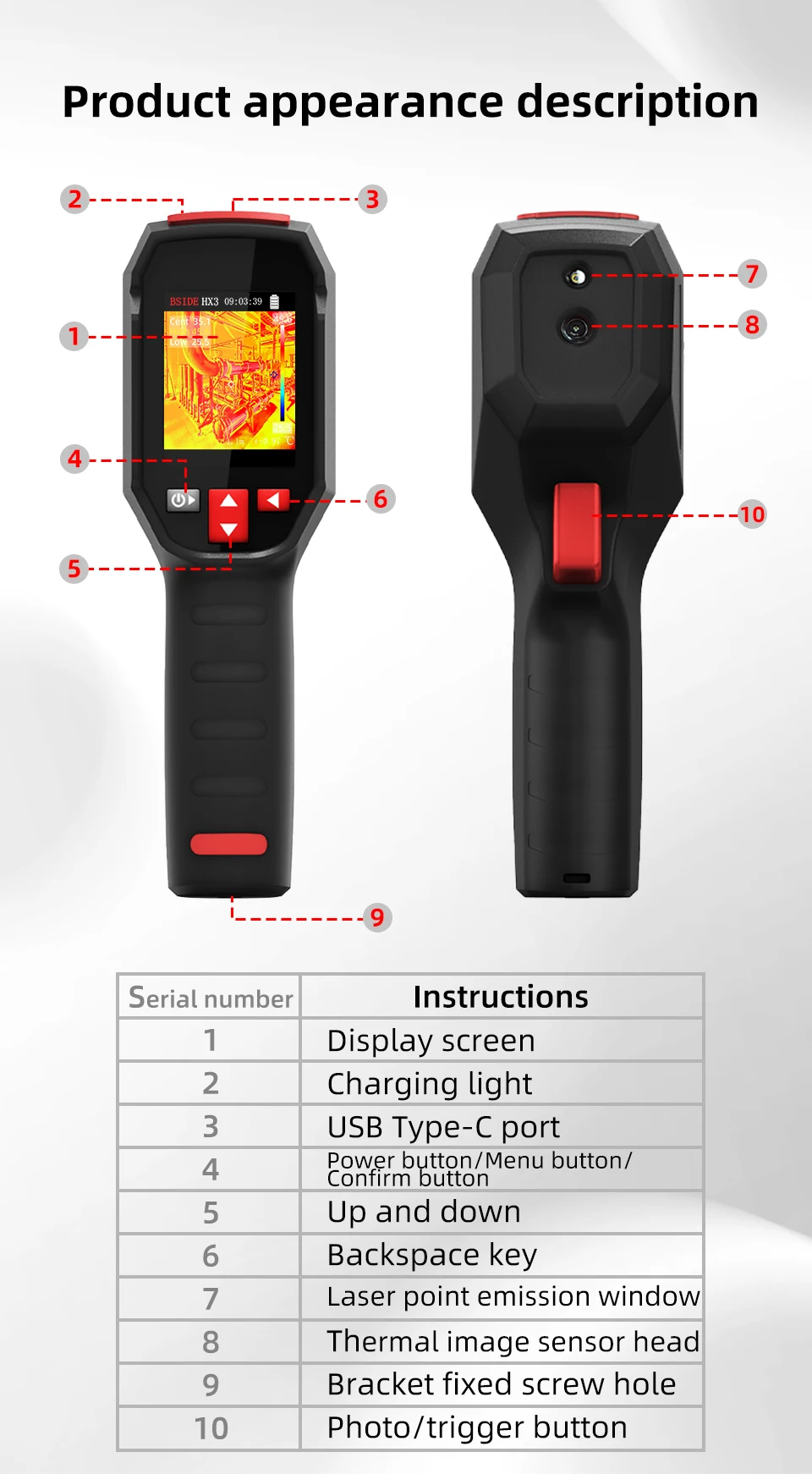

Buttons: Power button, Up button, Down button, Back button, Trigger button

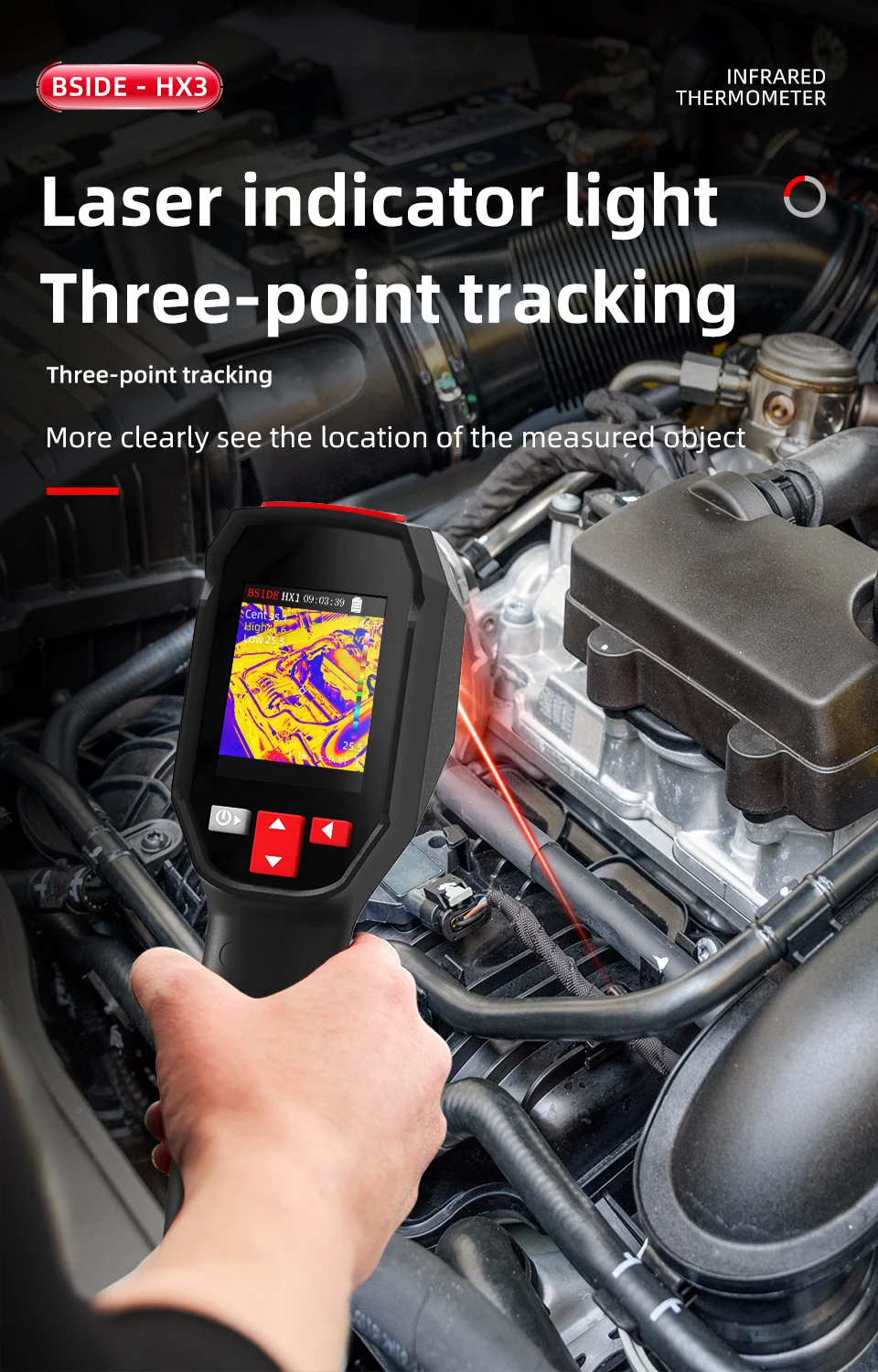

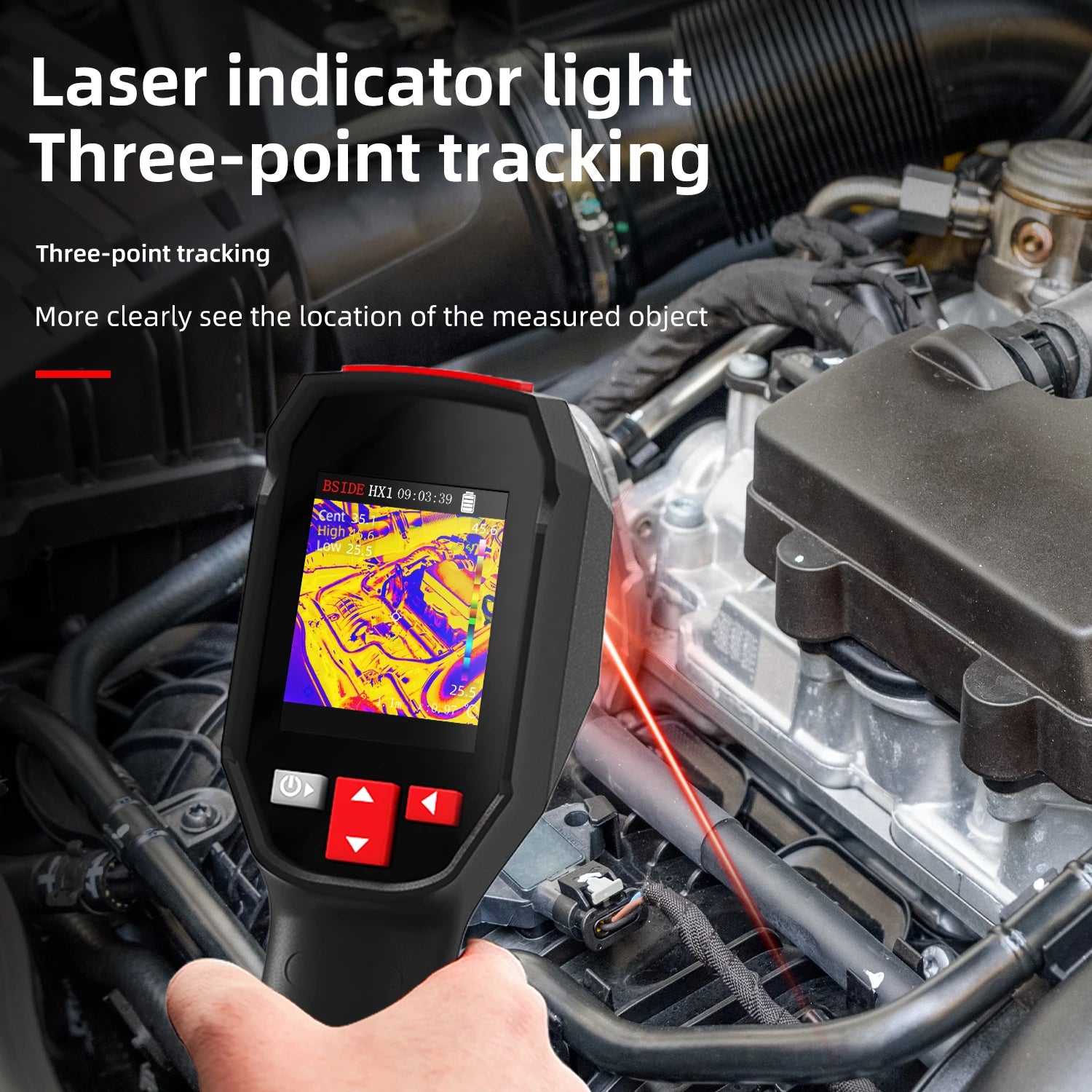

Laser indication: Yes

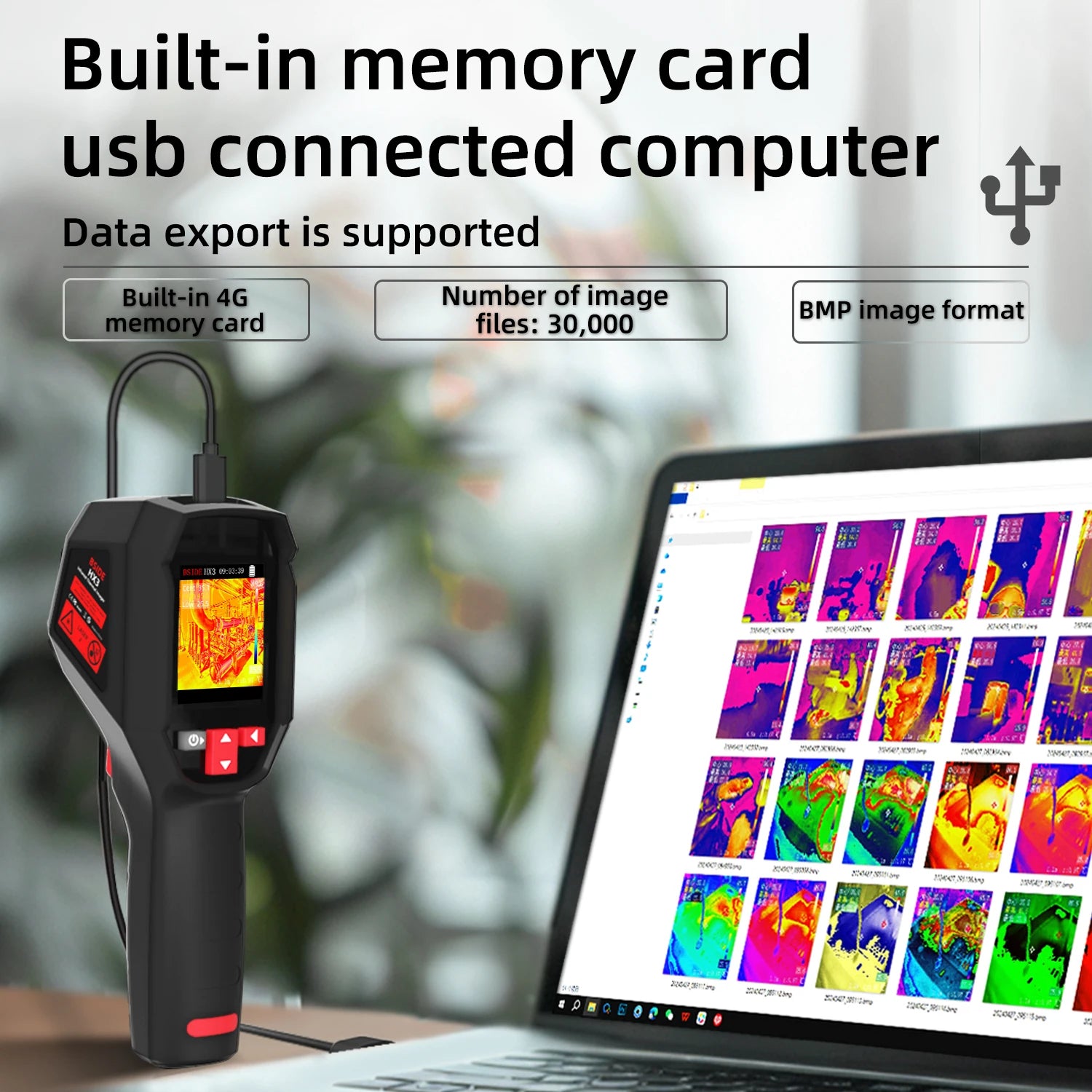

Storage: Built-in memory card

Number of image files: 30,000

Image format: BPM

Focusing method: Autofocus

High and low temperature tracking: √

Temperature alarm: Screen font color alarm

Battery type: Rechargeable lithium battery (3.7V/2500mAh)

Charging system: Type-C direct charging

Data interface: Type-C USB

Illumination/Laser Instruction: √

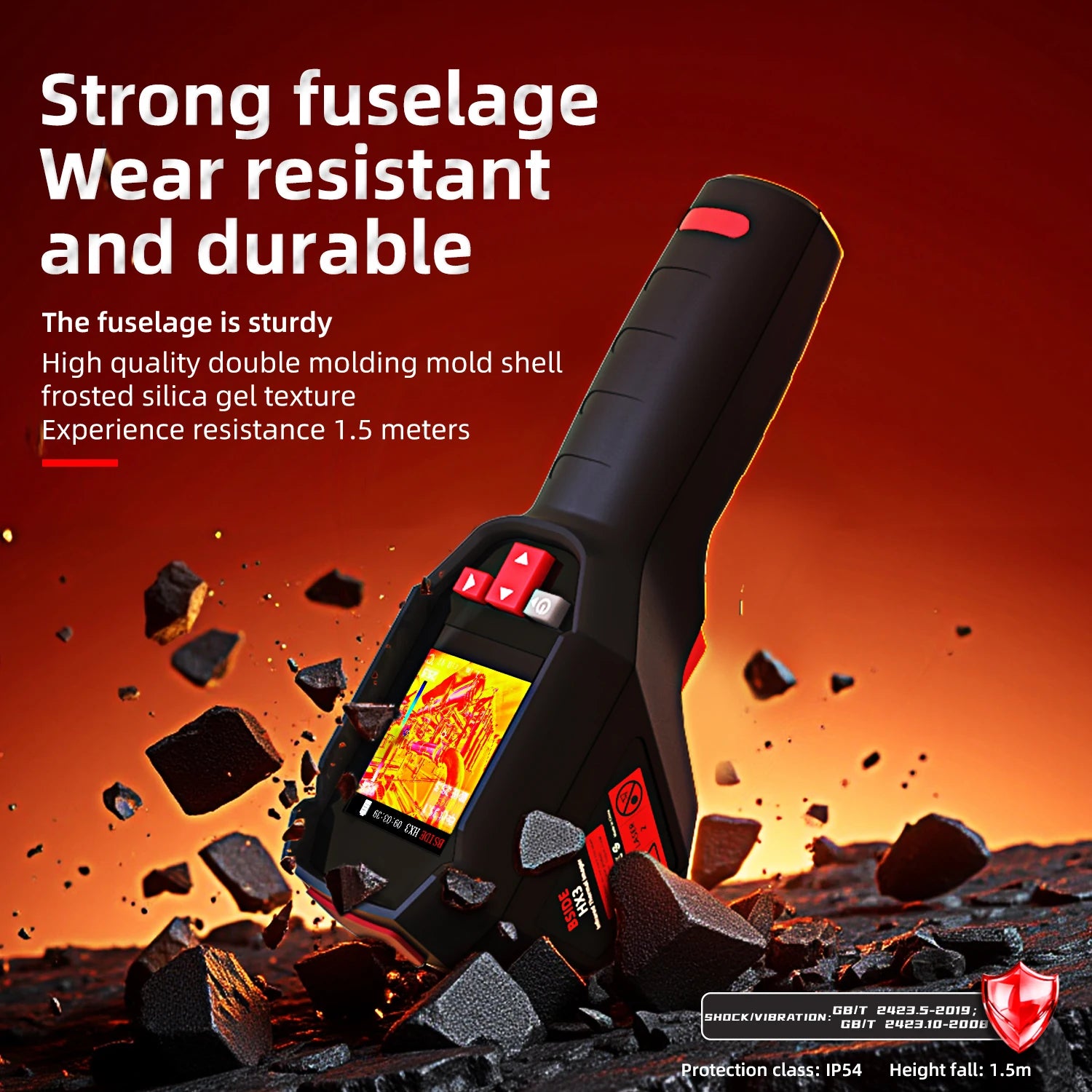

Protection Rating/Fall Protection Rating: IP54/1.5m

Dimensions (L x W x H): 193.4 x 59.4 x 77.4 mm

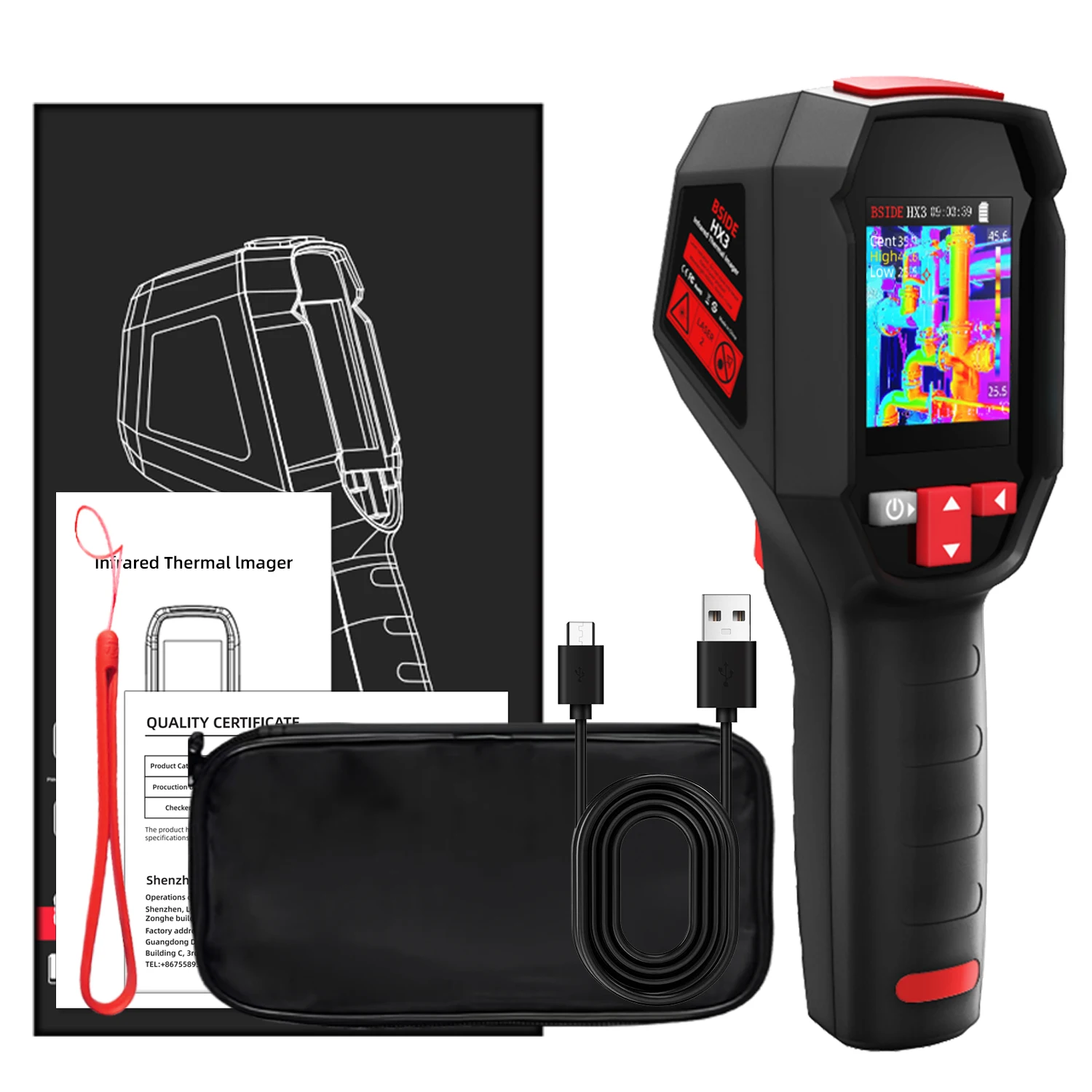

Package Includes:

1 x HX3 Thermal Imaging Camera

1 x Charging Cable

1 x Instruction Manual

1 x User Manual

1 x Color Box
