SucceBuy Mini Metal Lathe 8x14'' 2250PRM Variable Speed 600W Metal Working Lathe Milling Machine, Various Types of Metal Turning

SucceBuy Mini Metal Lathe 8x14'' 2250PRM Variable Speed 600W Metal Working Lathe Milling Machine, Various Types of Metal Turning

$860.99 USD
$0.00 USD $860.99 USD
Sale Sold out
Shipping calculated at checkout.
Color
Ships From

SPECIFICATIONS

Brand Name: succebuy

Certification: CE

Chuck Diameter: 3.9" / 100 mm

Distance Between Centers: 13.8" / 350 mm

Item Dimension: 32.6" x 12.2" x 13" / 83 x 31.2 x 33.2 cm

Item Weight: 116.2 lbs / 52.27 kg

Power of Motor: 600W

Spindle Bore: 0.8" / 21 mm

Spindle Speed: 50-2250 RPM

Spindle Taper: MT3

Swing Over Bed: 8.3" / 210 mm

Swing Over Cross Slide: 13.8" / 350 mm

Tailstock Taper: MT2

Volt: 220V 50Hz for EU, 110V 60Hz for US

Product Description

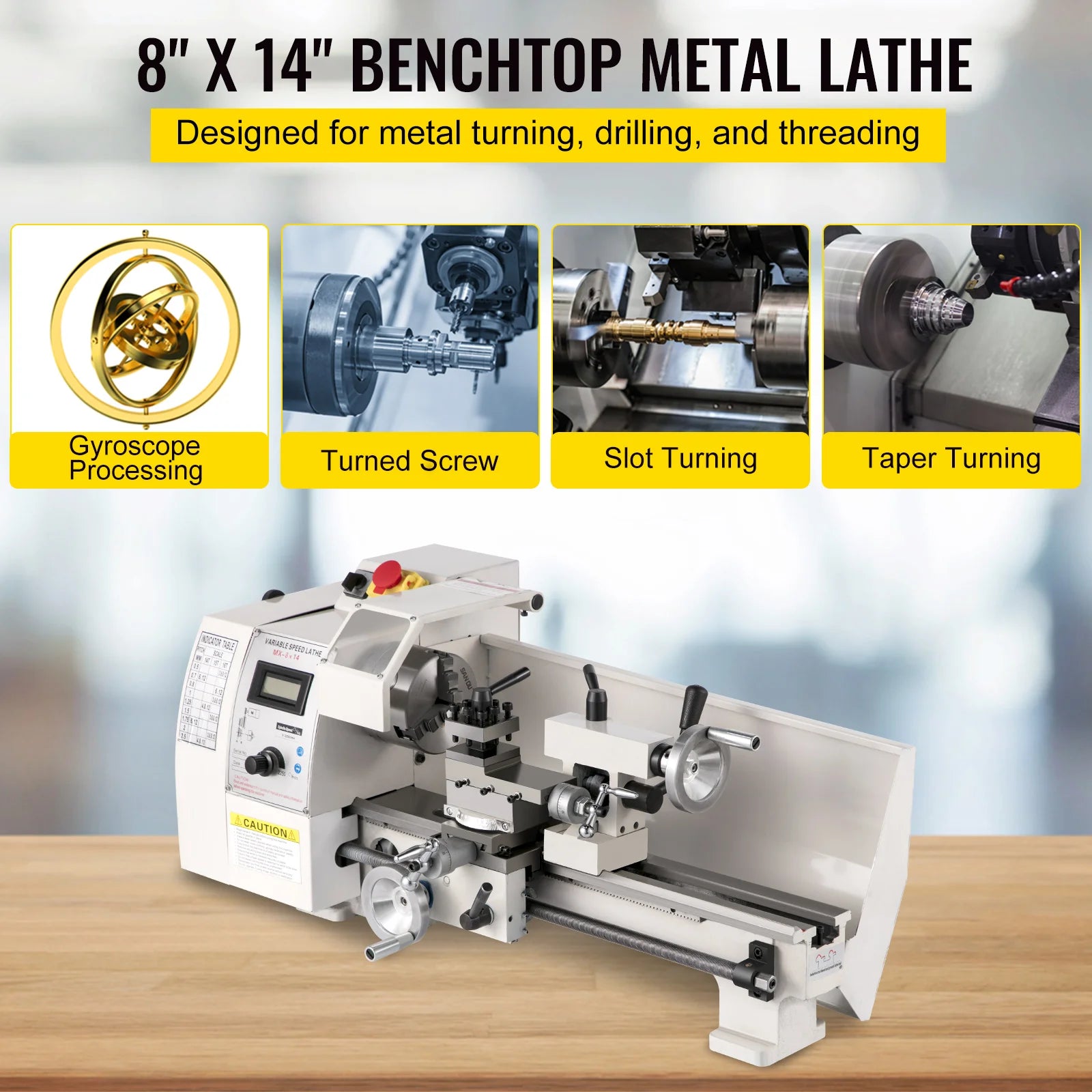

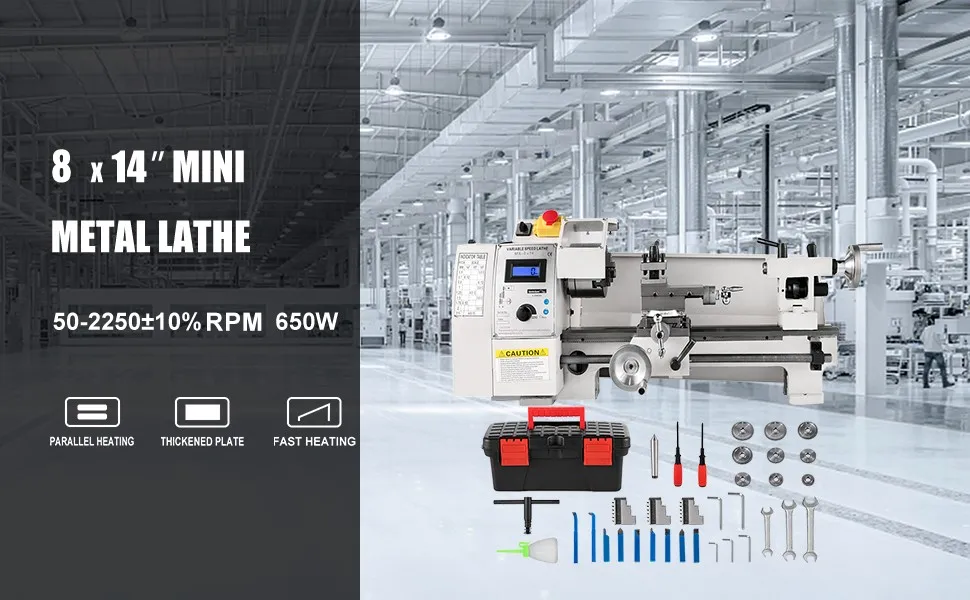

8 x 14 inch Mini Metal Lathe

The mini lathe is custom for you who are into making models, a Do-it-yourself (DIY) machinist, or a gun hobbyist. You can use it to create threaded parts as well as small components made with precision. The small but powerful 210*350 mm lathe of a thread range of 10-44 T.P.I will be the exact machine to fill in the vacancy in your garage.

  • Sturdy & Durable Construction

  • Infinitely Variable Speeds

  • Works with Precision

  • Faster & More Effective

Tough Equipment & Tools, Pay Less
SucceBuy is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, SucceBuy is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, SucceBuy's products are sold in more than 200 countries and regions with 10 million plus members worldwide.
Why Choose SucceBuy?

  • Premium Tough Quality

  • Incredibly Low Prices

  • Fast & Secure Delivery

  • 30-Day Free Returns

  • 24/7 Attentive Service

Key Features
Heavy-Duty Metal Lathe
The milling machine is made of rugged and wear-resistant cast iron, a tough material that features a long service life.
Variable Speeds
The metal lathe comes with variable speeds of 50-2250±10%. Easily change the speed by turning the switch. Meanwhile, the indicator beyond notifies you of the ongoing operations.
Effortless to Use
The mini lathe bears a 3-jaw chuck. The chuck is widely used where precise machining is required. 4-way tool rest offers positions of cutting. Heat hardening lead.
Large Swing Range
Swing Over Bed: 8.3" / 210 mm, Swing Over Cross Slide: 13.8" / 350 mm, 3-Jaw Chuck Diameter: 3.9" / 100 mm. The lathe machine is equipped with a foot stock which gives support to the longitudinal rotary axis of a workpiece.
Professional Cross Slide
Designed with abrasive resistance, moving blades freely with feed rod. 8-44 T.P.I reversible lead screw. A lamp is for accurate operation in a dark environment.
Wide Application
The metal lathe machine works without taking up a lot of room in your shop or garage, making bushings, spindles, prototypes, models, and more.
Specifications

  • Power of Motor: 600W

  • Volt: 220V 50Hz for EU/AU, 110V 60Hz for US/MX

  • Spindle Speed: 50-2250 RPM ±10%

  • Swing Over Bed: 8.3" / 210 mm

  • Distance Between Centers: 13.8" / 350 mm

  • Swing Over Cross Slide: 13.8" / 350 mm

  • Spindle Bore: 0.8" / 21 mm

  • Chuck Diameter: 3.9" / 100 mm

  • Spindle Taper: MT3

  • Tailstock Taper: MT2

  • Item Weight: 116.2 lbs / 52.27 kg

  • Item Dimension: 32.6" × 12.2" × 13" / 83 × 31.2 × 33.2 cm

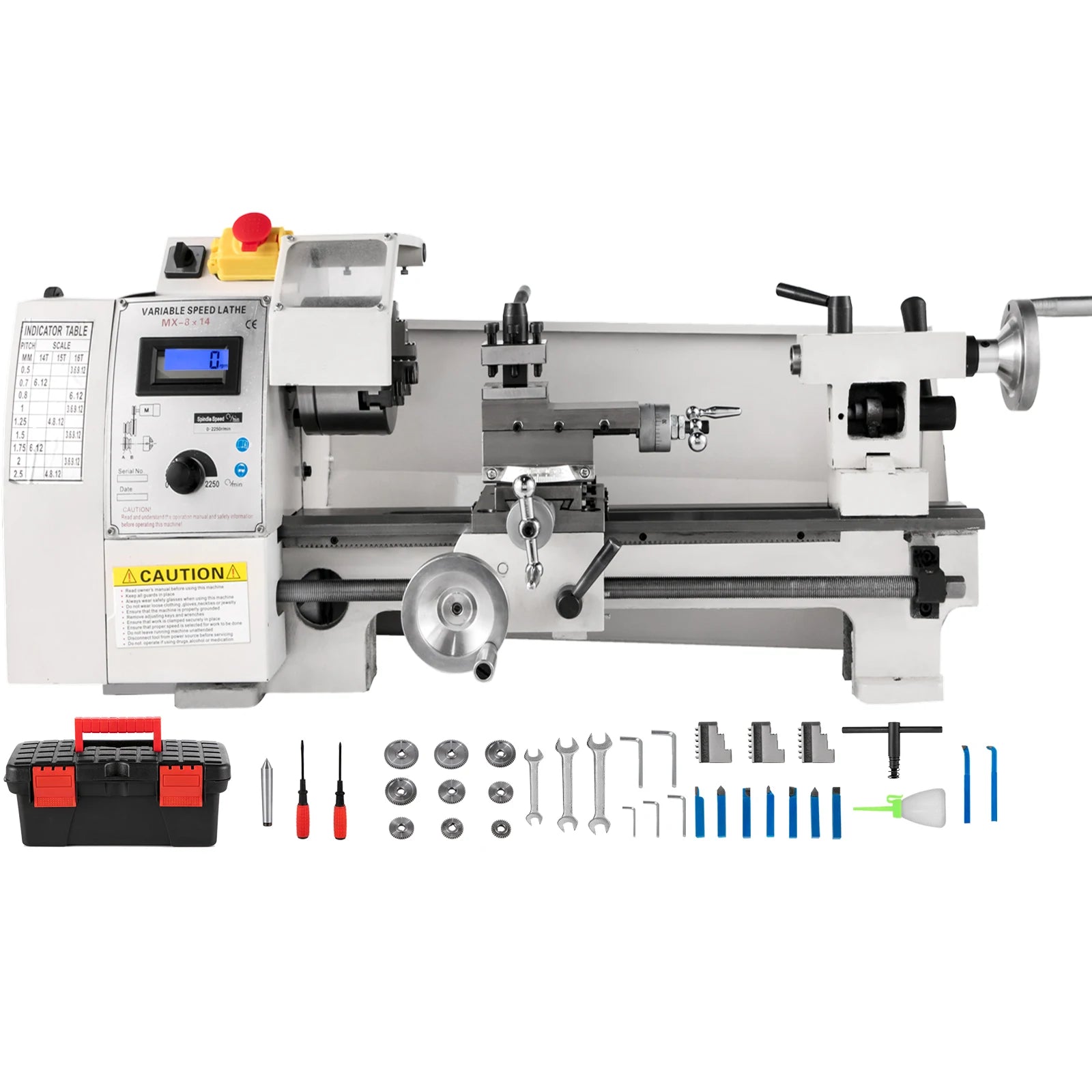

Package Content

  • 1 x Mini Metal Lathe

  • 9 x Metal Gears

  • 3 x Jaws

  • 1 x Oil Gun

  • 9 x Cutters

  • 5 x Allen Keys

  • 1 x Accessory Kit

  • 1 x Tool Kit


Features & Details

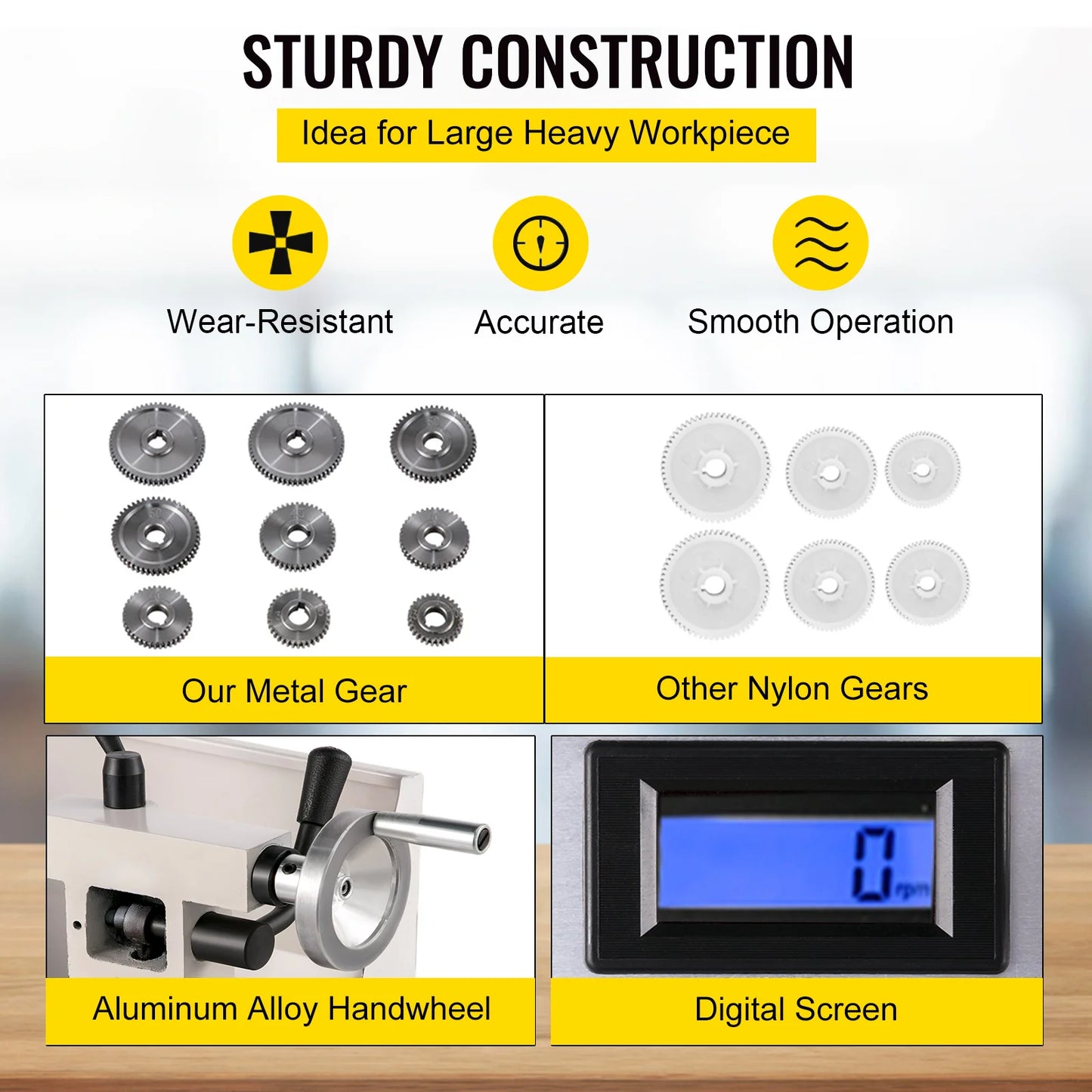

  • Sturdy & Durable Construction: The mini lathe is made of high-quality cast iron, which stands up to tear and wear. It is equipped with a 600W motor that delivers a great deal of energy. If you are into making models, it would be your professional assistant who has precise metric graduations and metal gears and therefore is punctilious.

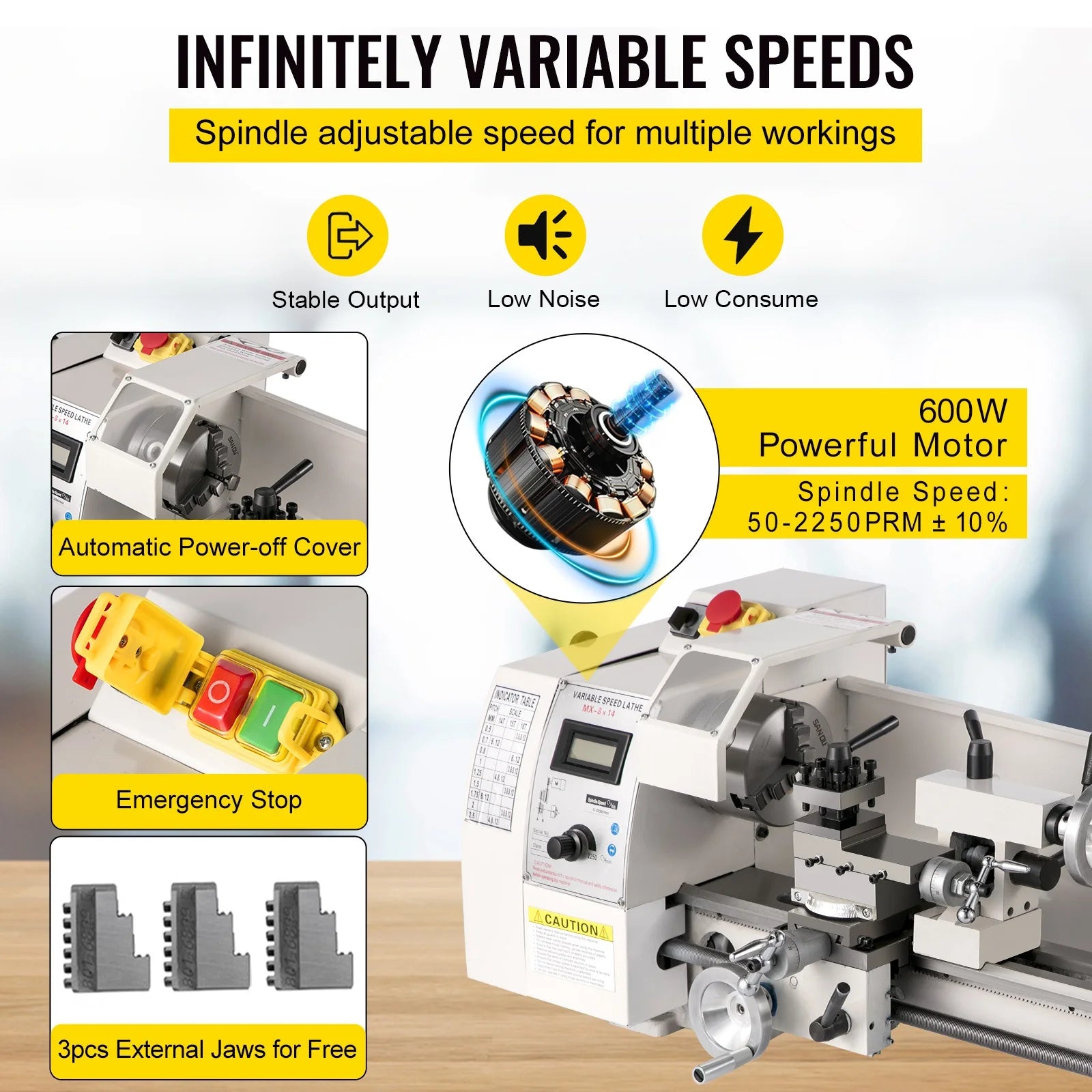

  • Infinitely Variable Speeds: Revolving Speed Range: 50-2250±10%. The mini lathe machine comes with variable speeds that give you the convenience to achieve the best work. This lathe allows you to work on both forward or reverse of any possible speed. The feeding rate can be adjusted manually or automatically. And an emergency button is accessible just in case.

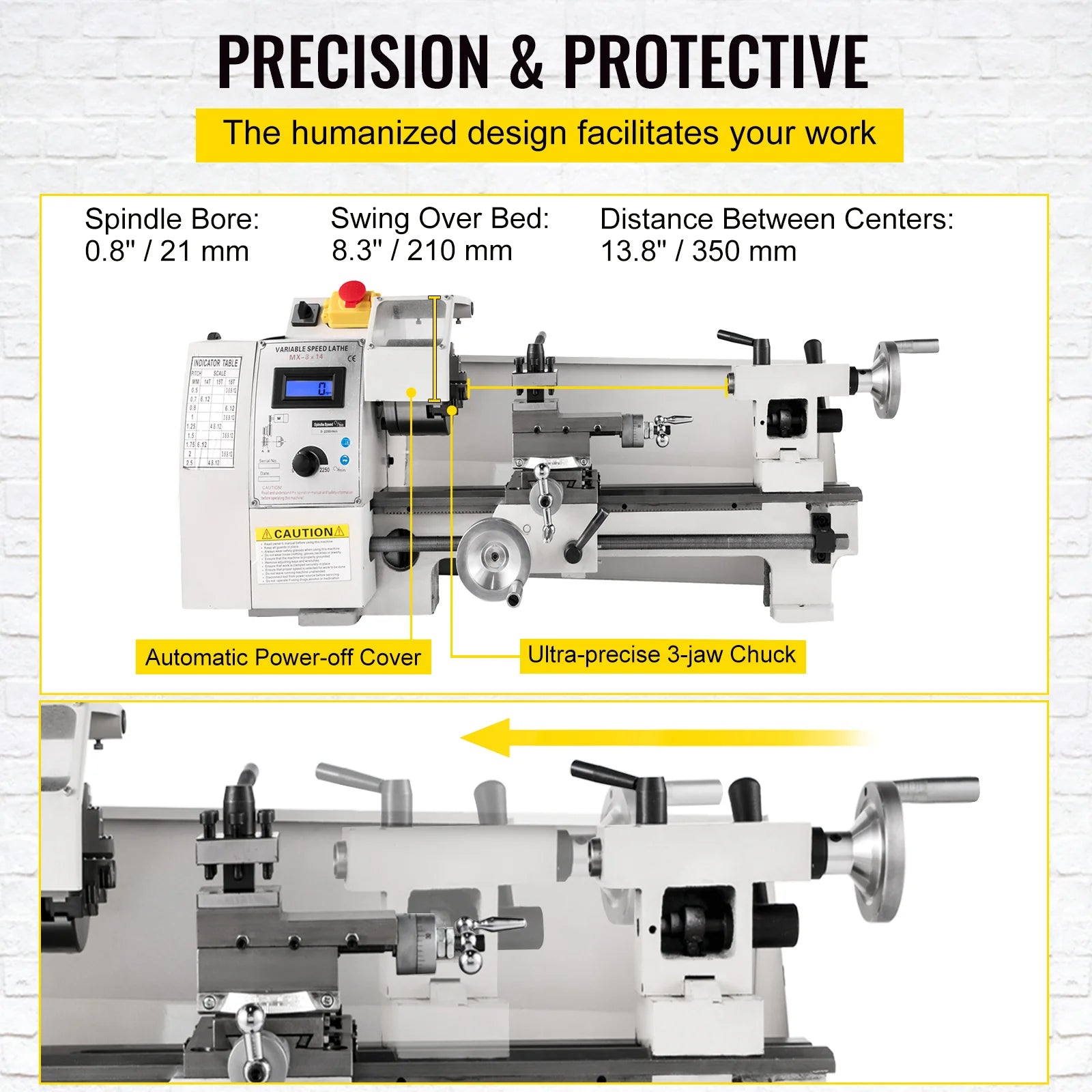

  • Works with Precision: Spindle Bore: 0.8"/21 mm. The metal working lathe is pre-installed with a 3-jaw chuck, 3.9"/100 mm in diameter, which clamps raw materials tight, and a backsplash guard that ensures your security during operation.

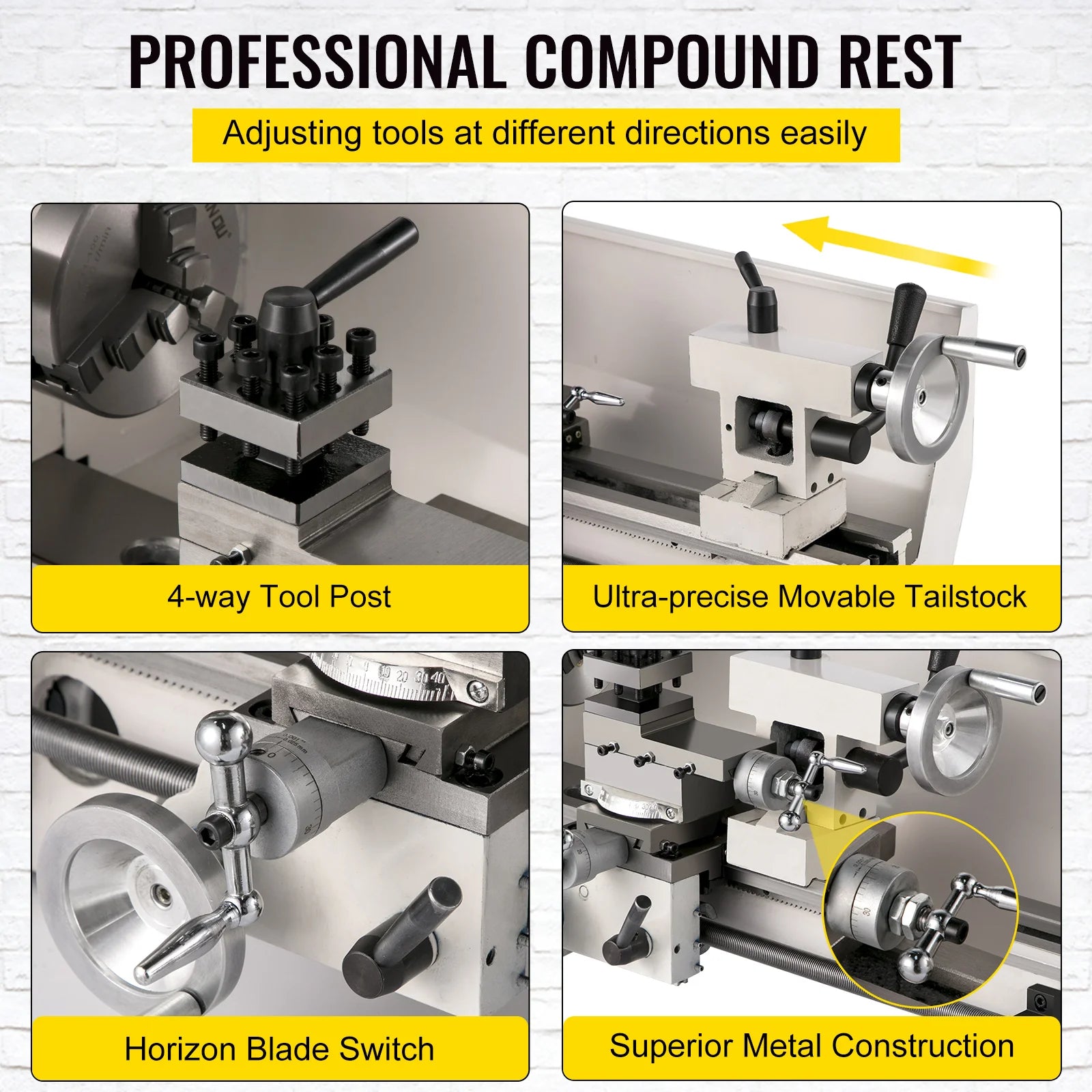

  • Faster & More Effective: Swing Over Bed: 8.3"/210 mm. Swing Over Cross Slide: 13.8"/350 mm. The small metal lathe features a turret post for quick tool change and a cross slide for free blade moving, making internal cutting, face cutting and bevel cutting possible.

  • Extensive Use: The lathe produces precision work without taking up a lot of room in your shop or garage, making bushings, spindles, prototypes, models, and more.
