Anern 6.2KW 4.2KW 3KW 1.6KW Hybrid Inverter Off Grid Dual AC Output MPPT 120A on Grid Solar Inverter 48V 24V 12V 230V PV 500Vdc

Anern 6.2KW 4.2KW 3KW 1.6KW Hybrid Inverter Off Grid Dual AC Output MPPT 120A on Grid Solar Inverter 48V 24V 12V 230V PV 500Vdc

$475.99 USD
$0.00 USD $475.99 USD
Sale Sold out
Shipping calculated at checkout.
Color
Output Voltage
Ships From

SPECIFICATIONS

AC Output Voltage Range: 195.5-253VAC

AC Start-up Voltage/Auto Restart Voltage: 120-140VAC/180VAC

Acceptable AC Input Voltage Range: 90-280VAC or 170-280VAC

Brand Name: ANERN

Certification: None

Feed-in Grid Frequency Range: 49-51±1Hz / 59-61±1Hz

Is Smart Device: Yes

MPPT DC Voltage Range: 90-450VDC

Maximum AC Charging Current: 100A

Maximum AC Input Current: 30A/40A

Maximum Charging Current(Solar to AC): 120A

Maximum Input Current: 27A

Model Number: AN-SCI-EVO-6200W

Nominal AC Output Current: 15.7A/27.0A

Nominal AC Output Voltage: 220/230/240VAC

Nominal DC Voltage/Maximum DC Voltage: 360VDC/500VDC

Nominal Input Frequency: 50/60Hz (Auto detection)

Nominal Operating Frequency: 50/60Hz

Nominal Output Voltage: 220/230/240VAC

Number of MPPT Trackers: 1

Output Current: 26.7A

Output Frequency: 50Hz

Output Power: 1 - 200 KW

Output Type: SINGLE

Output Waveform: Pure sine wave

Power Factor: >0.99

Size: 450*350*110mm

Start-up Voltage/Initial Feeding Voltage: 90VDC/120VDC

Surge Power: 7200W/12400W

Weight: 10KG


Inverter use notice:
1. The starting power of inductive load electrical appliances shall be at least three times of the rated power of the electrical appliances. If the starting power exceeds the inverter power, the inverter may be damaged. Please select a suitable model before purchasing.

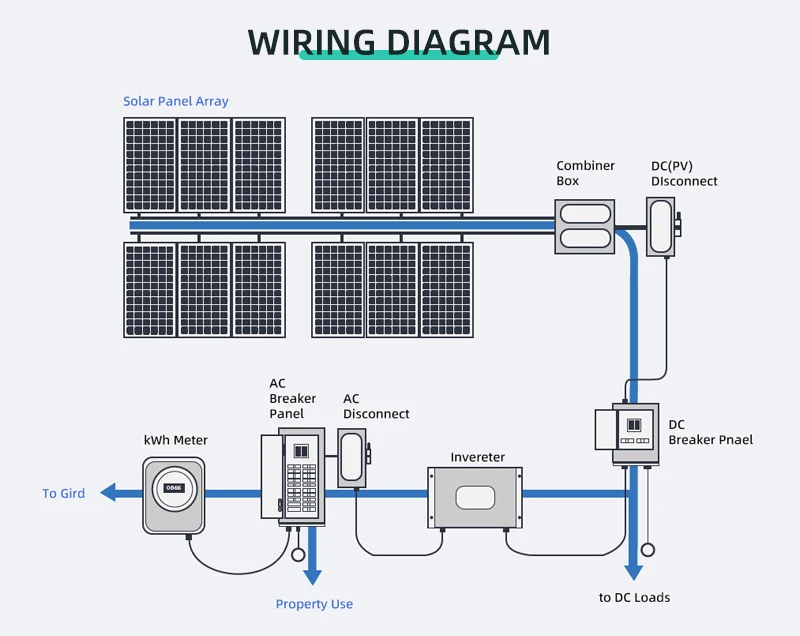

2. Please connect the circuit correctly according to the instructions, and install switches for each circuit.
3. Starting sequence: first turn on the battery switch, start the inverter, and turn on the PV, mains and load switches.
4. Shutdown sequence: turn off the switches of load, PV and mains, turn off the inverter, and finally turn off the battery.
Please find an electrician to install the inverter. Installing it yourself can cause danger or damage to the equipment.

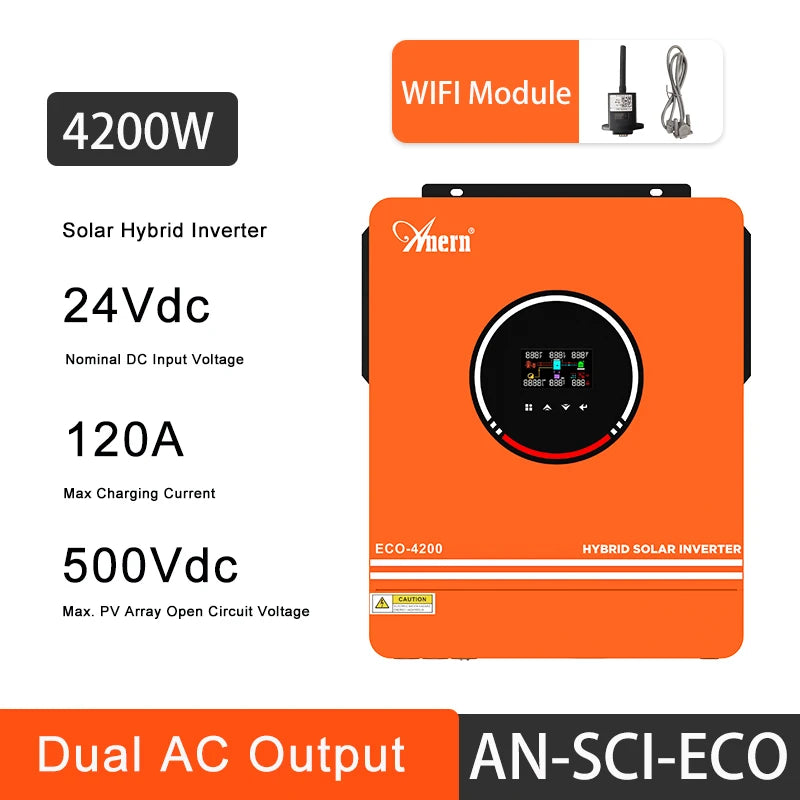

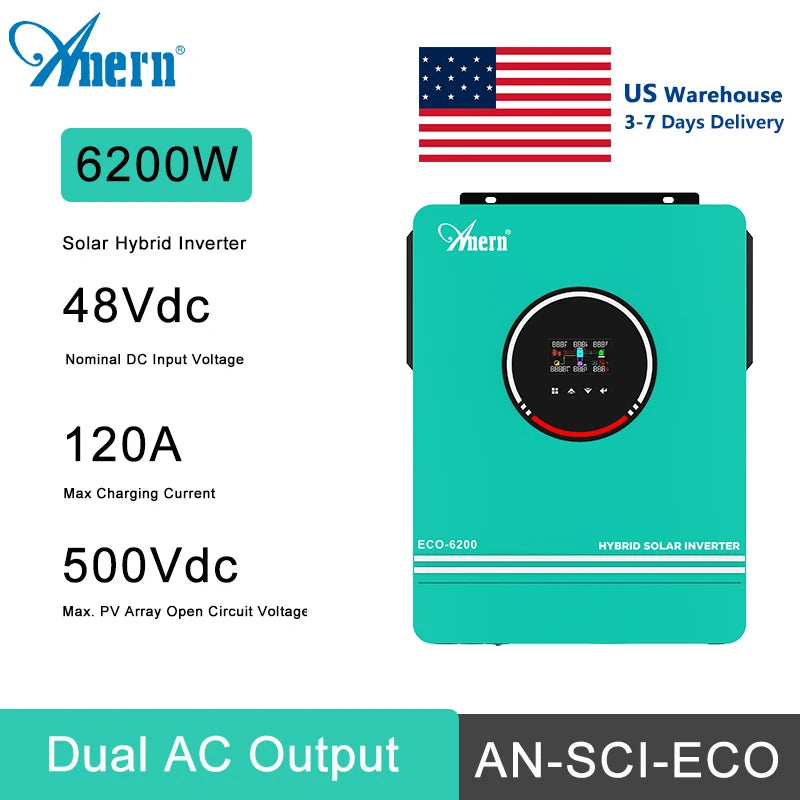

ECO 6200W 48V& 4200W 24V

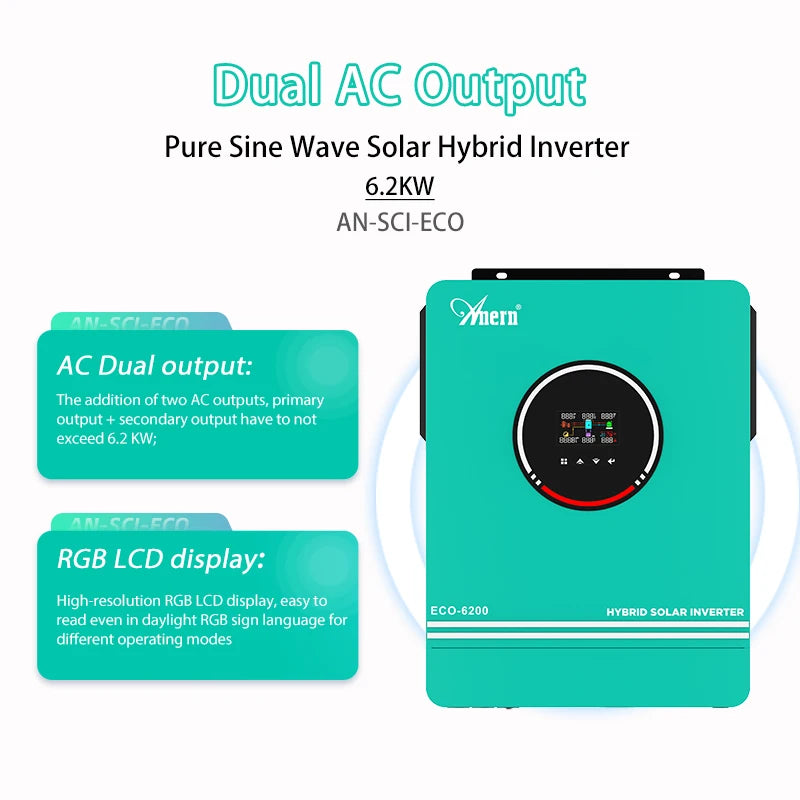

1. Dual AC Output.
2. It is a hybrid inverter that can be both off-grid and on-grid connected. Whether or not it can sell electricity into the grid depends on local government policy. But our solar inverters do not have VDE certification and may not be on-grid connected in some countries.
3. It can work with or without battery. However, without battery, the solar panel voltage has to exceed 360 Vdc. It is recommended that batteries are connected.

3000W 24V & 1600W 12V
1. It needs to be connected to the battery.
2. It is recommended to be used without WIFI module.
3. It is a hybrid inverter that can not be on-grid connected.

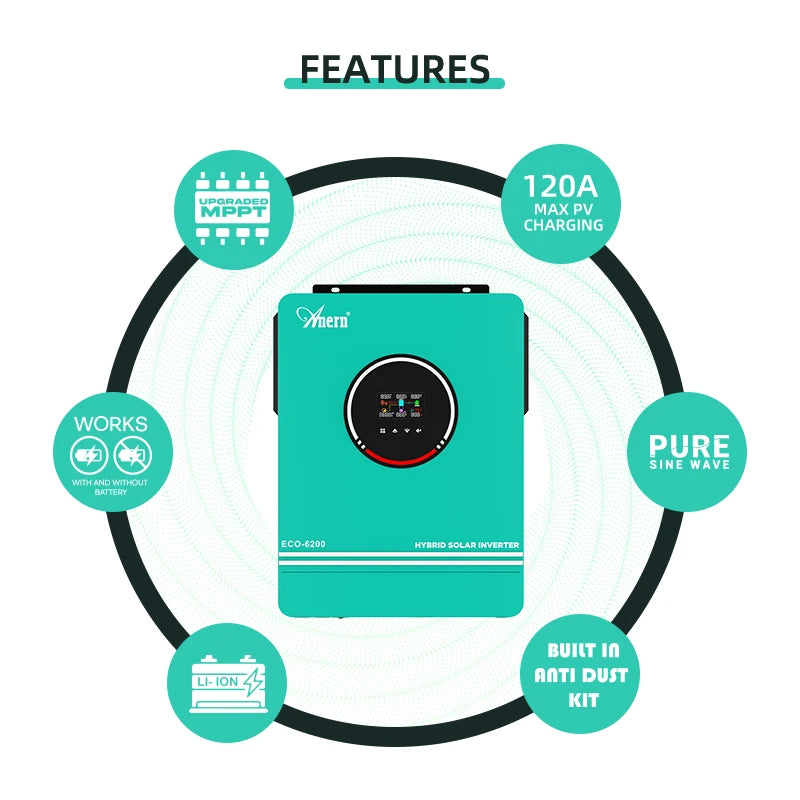

Key Features:
 ◆ Pure Sine Wave Solar Hybrid Inverter;
 ◆ Be able to run without battery;
 ◆ One-key restoring to factory default settings;
 ◆ PV automatically activates lithium batteries;
 ◆ Bulit-in MPPT solar controller, max charge current 120A;
 ◆ Max 6200W & 6500W solar input power respectively;
 ◆ Wide PV input voltage range (90-450VDC);
 ◆ Built-in anti-dusk kit for harsh environment.
 ◆ Smart battery charge design to maximize battery lifespan
 ◆ Dual AC output;
 ◆ WIFI available for IOS and Android systems.

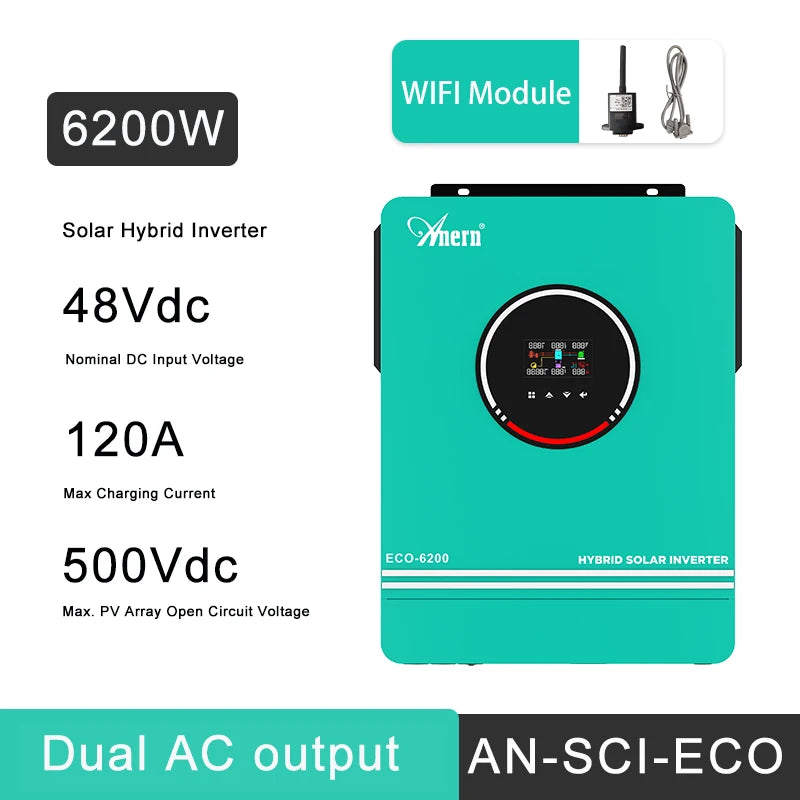

INVERTER MODEL

SCI-ECO-4.2KW

SCI-ECO-6.2KW

Inverter Mode Specifications

Rated Output Power

4.2KW

6.2KW

Output Voltage Waveform

Pure Sine Wave

Output Voltage Regulation

230Vac±5%

Output Frequency

50Hz

Peak Efficiency

93%

Overload Protection

3s@≥150%load; 5s@101%~150% load

Surge Capacity

2* rated power for 5 seconds

Nominal DC Input Voltage

24Vdc

48Vdc

Cold Start Voltage

23.0Vdc

46.0Vdc

No Load Power Consumption

35W

50W

Two Load Output Power

Full Load

4200W

6200W

Maximum Main Load

4200W

6200W

Maximum Second Load(battery model)

1400W

2066W

Main Load Cut Off Voltage

22VDC

44VDC

Main Load Return Voltage

26VDC

52VDC

Charge Mode Specifications

Utility Charging Mode

Charging Algorithm

3-Step

AC Charging Current (Max)

100Amp

Floating Charging Voltage

27Vdc

54Vdc

MPPT Solar Charging Mode

Max. PV  Array Power

6200W

6500W

Nominal PV Voltage

240Vdc

360Vdc

PV Array MPPT Voltage Range

60Vdc~500Vdc

Max. PV Array Open Circuit Voltage

500Vdc

Max Charging Current
(AC charger plus solar charger)

120Amp

Grid-Tie Operation

Nominal Output Voltage

220/230/240 VAC

Feed-in Grid Voltage Range

195~253VAC

Feed-in Grid Frequency Range



Nominal Output Current

18.2A

26.9A

Power Factor Range

>0.99

Maximum Conversion Efficiency (DC/AC)

97%

General Specifications

Safety Certification

CE

Operating Temperature Range

–10°C - 50°C

Storage temperature

–15°C - 60°C

Humidity

5% to 95% Relative Humidity (Non-condensing)

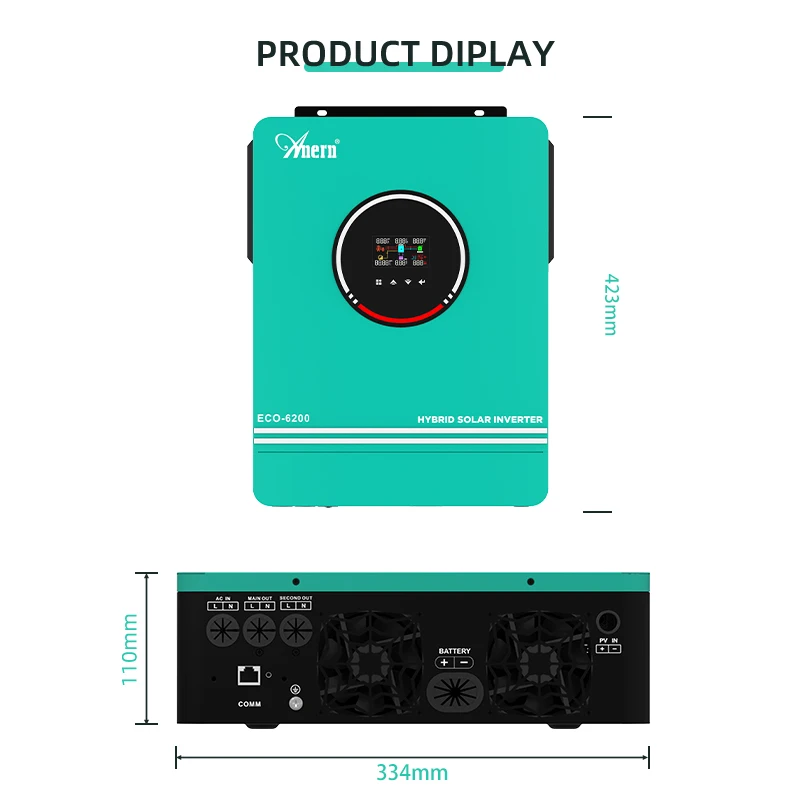

Dimension, D x W x H (mm)

110*334*423

Net Weight (kgs)

9.5

10

Advantages of dual output:

In a power generation system using lithium batteries for storage, when the inverter is under full load or high-power load, due to the characteristics of lithium batteries, the battery voltage tends to drop too quickly, which shall make the battery voltage too low and disconnect the battery while the battery bank still keeps 50% of rated power.

With the dual output function, user can connect some important loads to the secondary output. When the battery voltage is low (typically lower than 44V, with a minimum setting of 41V), the inverter shall disconnect the main load and ensure the output of the secondary load, which can extend the operation time of the secondary load.

Key Features:
 ◆ Pure Sine Wave Solar Hybrid Inverter;
 ◆ Output Power Factor 1.0
 ◆ Bulit-in MPPT solar controller, max charge current 80A;
 ◆ Max 2000W & 3000W solar input power respectively;
 ◆ Wide PV input voltage range (30-400VDC), lowest voltage only 30V;
 ◆ Built-in anti-dusk kit for harsh environment;
 ◆ Smart battery charge design to maximize battery lifespan;

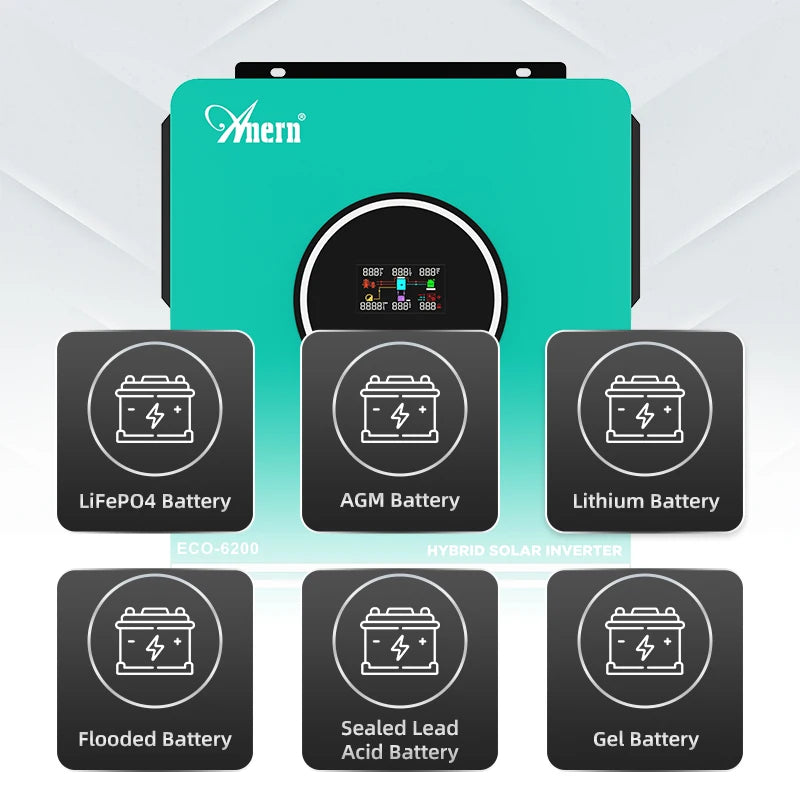

 ◆ Compatibe with lithium battery;
 ◆ WIFI available for IOS and Android systems.

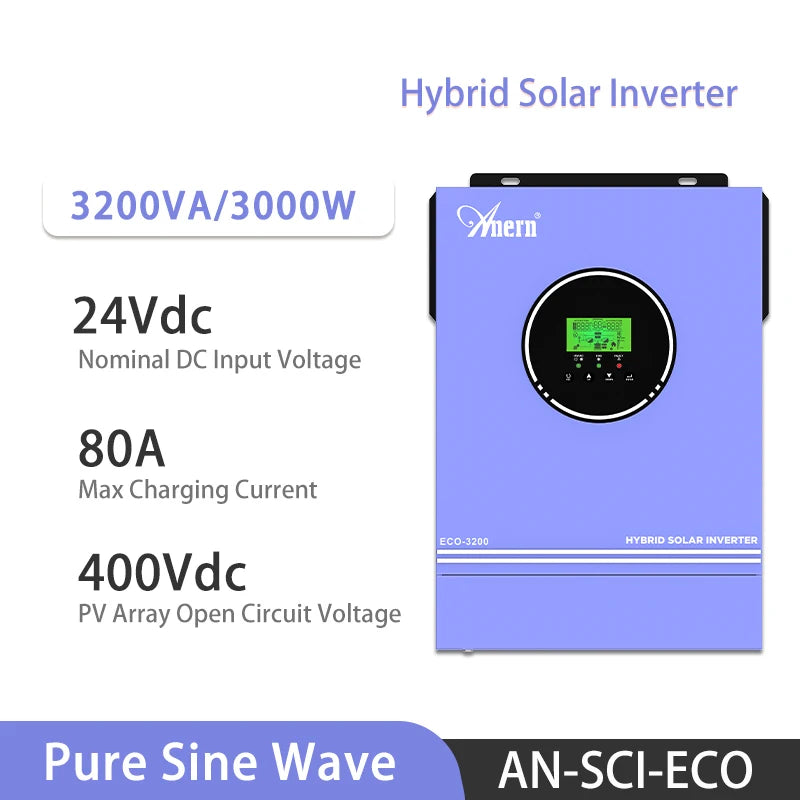

Model

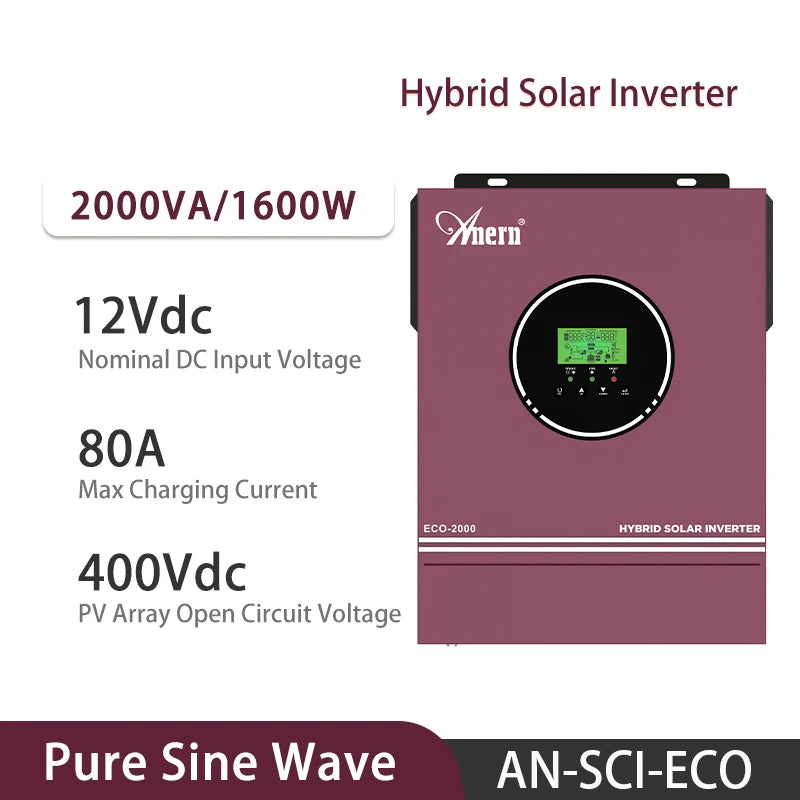

SCI-ECO-2000

SCI-ECO-3200

RATED POWER

2000VA/1600W

3200VA/3000W

AC INPUT

AC Input Voltage

230VAC

Selectable Voltage Range

170-280 VAC (For Personal Computers)

90-280 VAC (For Home Appliances)

Frequency Range

50 Hz/60 Hz (Auto sensing)

AC OUTPUT

AC Voltage Regulation (Batt. Mode)

230VAC ± 5%

Surge Power

4000VA

6400VA

Efficiency (Peak) PV to Inverter

98%

Efficiency (Peak) Battery to Inverter

94%

Transfer Time

10 ms (For Personal Computers); 20 ms (For Home Appliances)

Waveform

Pure sine wave

BATTERY & AC CHARGER

Battery Voltage

12VDC

24VDC

Floating Charge Voltage

13.5VDC

27VDC

Overcharge Protection

16VDC

33VDC

Maximum AC Charge Current

60A

SOLAR CHARGER

Maximum PV Array Power

2000W

3000W

MPPT Range @ Operating Voltage

30-400VDC

Maximum PV Array Open Circuit Voltage

400VDC

Maximum Charging Current

80A

PHYSICAL

Dimension, D x W x H (mm)

360*270*100mm

390*270*100mm

Net Weight (kg)

4.4

5.4

INTERFACE

Communication interface

WIFI

OPERATING ENVIRONMENT

Humidity

5% to 95% Relative Humidity(Non-condensing)

Operating Temperature

–10°C - 50°C

Storage Temperature

–15°C - 60°C
